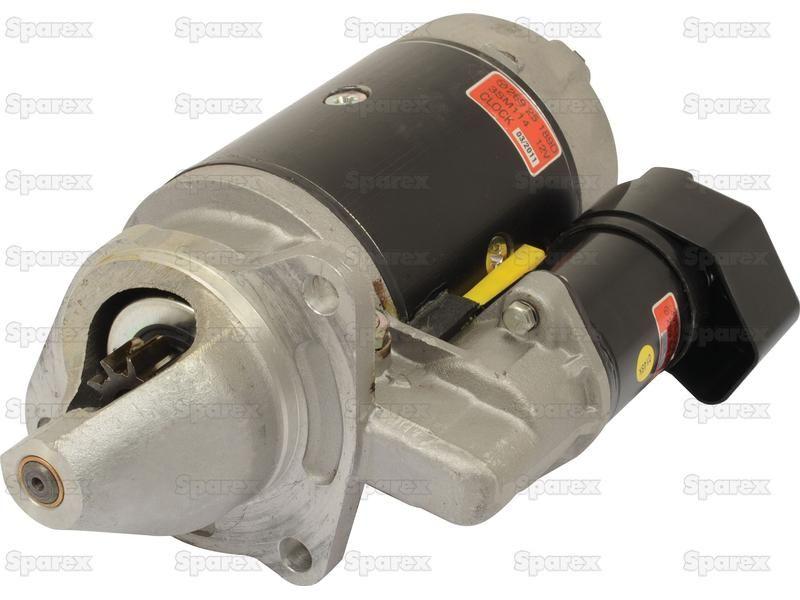

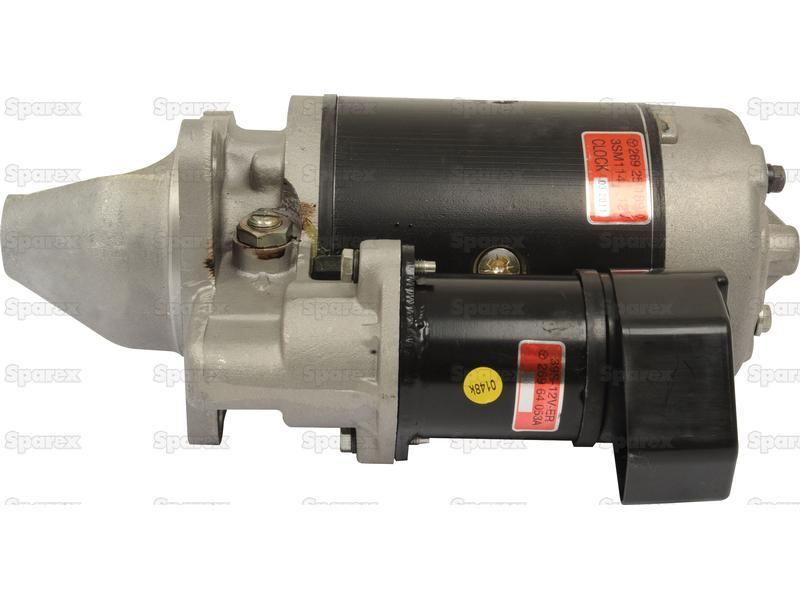

Starter Motor - 12V, 2.7Kw (Mahle) for Massey Ferguson 35 (Pre 100 Series (1947 - 65))

Part Number: S.113795Categories: Electrical Accessories
Starter Motor - 12V, 2.7Kw (Mahle) for Massey Ferguson 35 (Pre 100 Series (1947 - 65))
Starter Motor - 12V, 2.7Kw (Mahle) for Massey Ferguson 35 (Pre 100 Series (1947 - 65))
Starter Motor - 12V, 2.7Kw (Mahle) for Massey Ferguson 35 (Pre 100 Series (1947 - 65))
Starter Motor - 12V, 2.7Kw (Mahle) for Massey Ferguson 35 (Pre 100 Series (1947 - 65))

Part Number: S.113795

Grade: Replacement

Part Details

Starter Motor - 12V, 2.7Kw (Mahle)

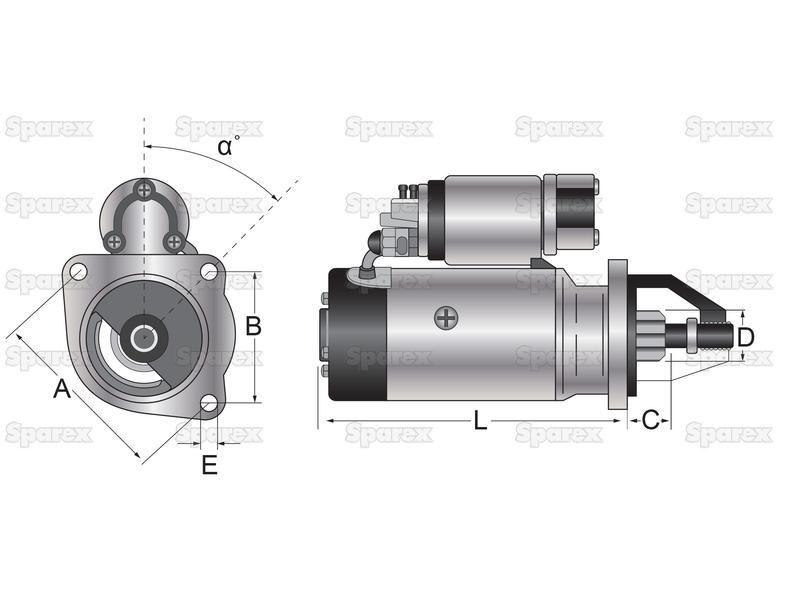

Technical Information

a Angle ° 45
A mm 146
B mm 92
Bell Opening LH
Brand Mahle
C mm 28.7
D mm 39.6
Distance Between Teeth mm 15.4
E mm 13
Fitting 3 Hole Flange - LH Opening
Gear Reducted No
Height mm 146.1
Kilowatts 2.7
Length from Front Mounting Face to Rear mm 225
Length mm 381
Mounting Hole mm 13
Number of Flange Holes 3
Number of Teeth 10
Related Products 39956
Tariff Code 8511400090
Volts 12V
Width mm 219.1

Manufacturer Part Numbers

Iskra
IS0520
Landini
3539389M91, 3542184M91, 3542184M92, 3546390M91
Massey Ferguson
3597371M2, 9643382M1
