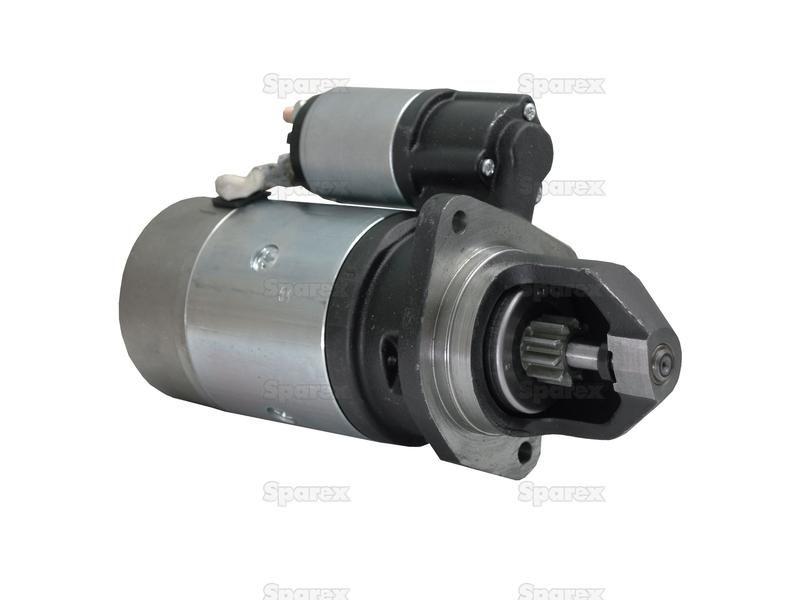

Starter Motor - 12V, 2.7Kw (Mahle) for Case IH
Part Number: S.36219Categories: Electrical Accessories
Part Number: S.36219
Grade: Replacement
Part Details
Starter Motor - 12V, 2.7Kw (Mahle)
Technical Information

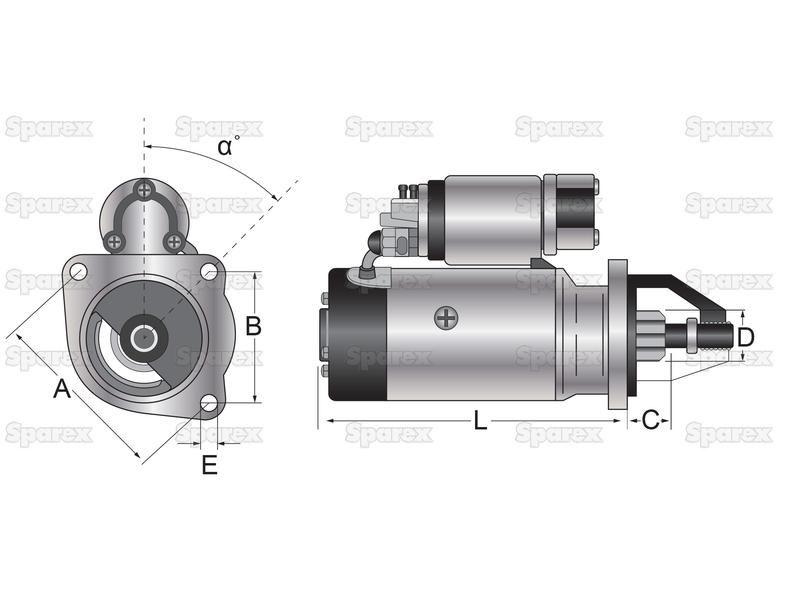

| a Angle ° | 45 |
| A mm | 127 |
| B mm | 89 |
| Bell Opening | LH |
| Brand | Mahle |
| C mm | 51 |
| D mm | 32 |
| Distance Between Teeth mm | 12.3 |
| E mm | 10.9 |
| Fitting | 3 Hole Flange - LH Opening |
| Gear Reducted | No |
| Height mm | 142.9 |
| Kilowatts | 2.7 |
| Length from Front Mounting Face to Rear mm | 185 |
| Length mm | 308 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 3 |
| Number of Teeth | 10 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Related Products | 39951, 39960 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 222.3 |
Models
| Case IH |
|---|
| 5120 (Maxxum Series), 5220 (Maxxum Series) |
Manufacturer Part Numbers
| Case IH |
|---|
| A186180 |
| Iskra |
| IS0665 |
