Starter Motor - 12V, 2.7Kw (Mahle) Bosch, Iskra, Lester, Lucas
Part Number: S.149069Categories: Electrical Accessories
Part Number: S.149069
Grade: Replacement
Part Details

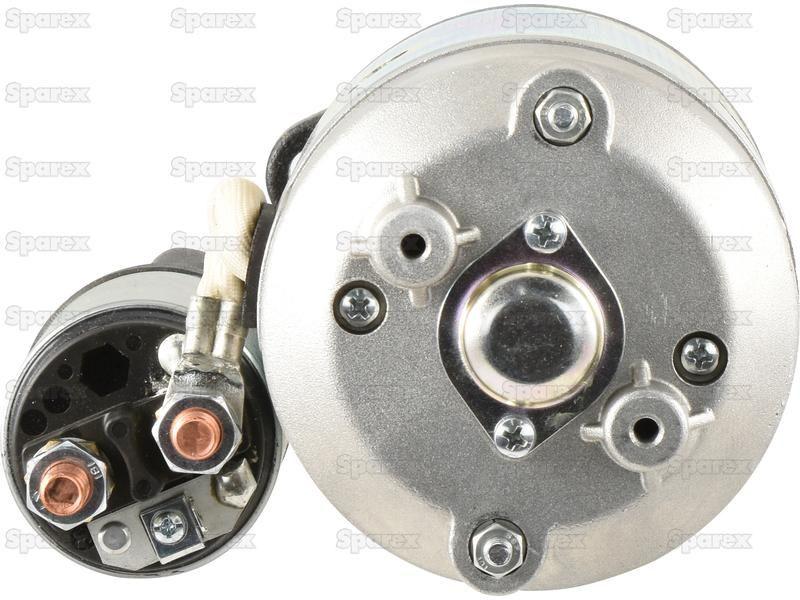

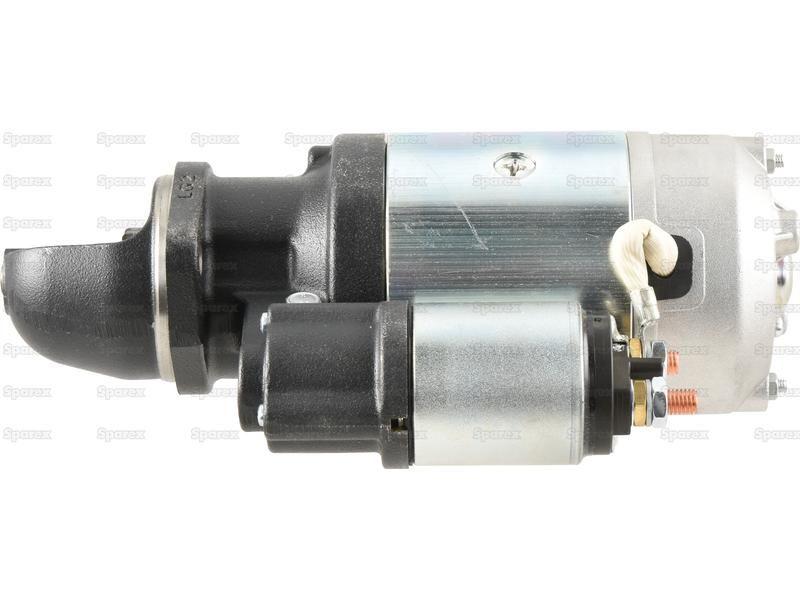

Starter Motor - 12V, 2.7Kw (Mahle)
Technical Information

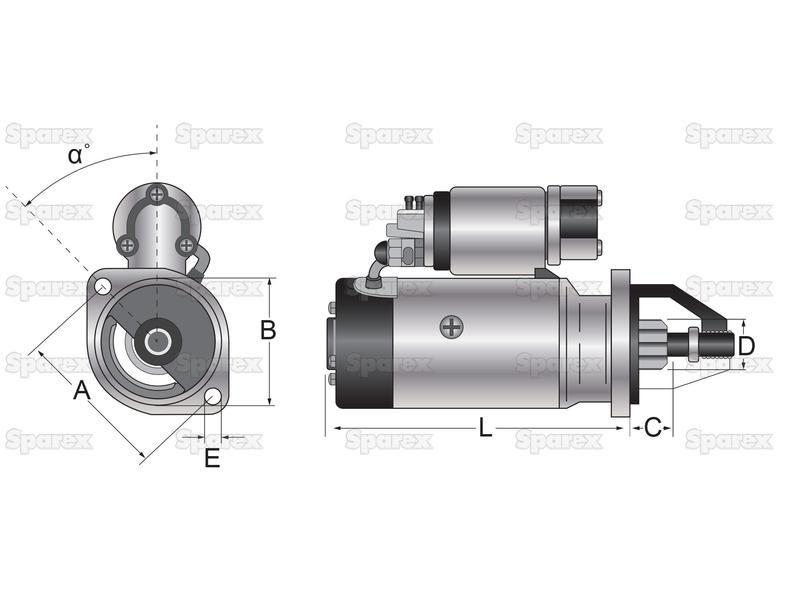

| a Angle ° | -35 |
| A mm | 105 |
| B mm | 82.5 |
| Bell Opening | LH |
| Brand | Mahle |
| C mm | 24 |
| D mm | 41 |
| Distance Between Teeth mm | 14.4 |
| E mm | 13.5 |
| Fitting | 2 Hole Flange - LH Opening |
| Gear Reducted | No |
| Height mm | 146.1 |
| Kilowatts | 2.7 |
| Length from Front Mounting Face to Rear mm | 293 |
| Length mm | 381 |
| Mounting Hole mm | 13.5 |
| Number of Flange Holes | 2 |
| Number of Teeth | 11 |
| Outer Diameter of Battery Terminal mm | 9.8 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 215.9 |
Manufacturer Part Numbers
| Bosch |
|---|
| 0001358027, 0001359007, 0001359060, 0001362303, 0001362304, 0001367008, 0986017970 |
| Iskra |
| IS1033 |
| Lester |
| 18236, 18943 |
| Lucas |
| LRS01202 |
