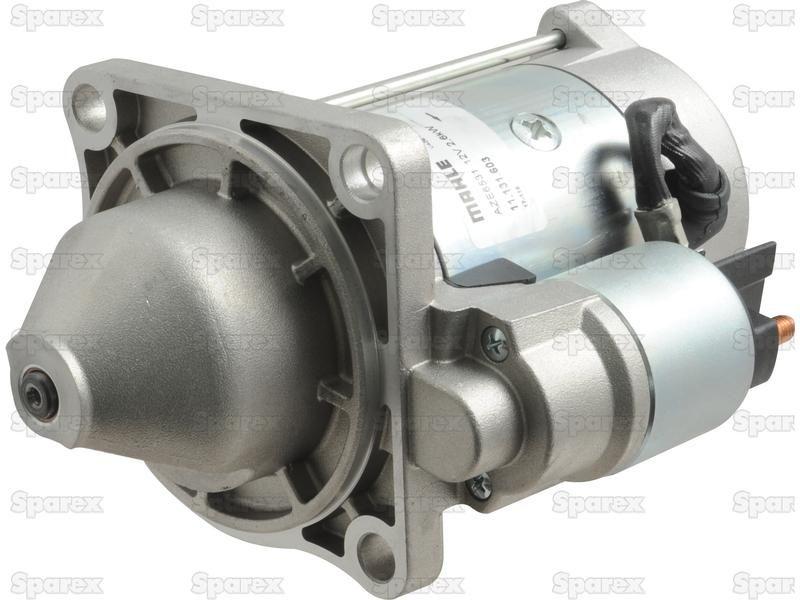

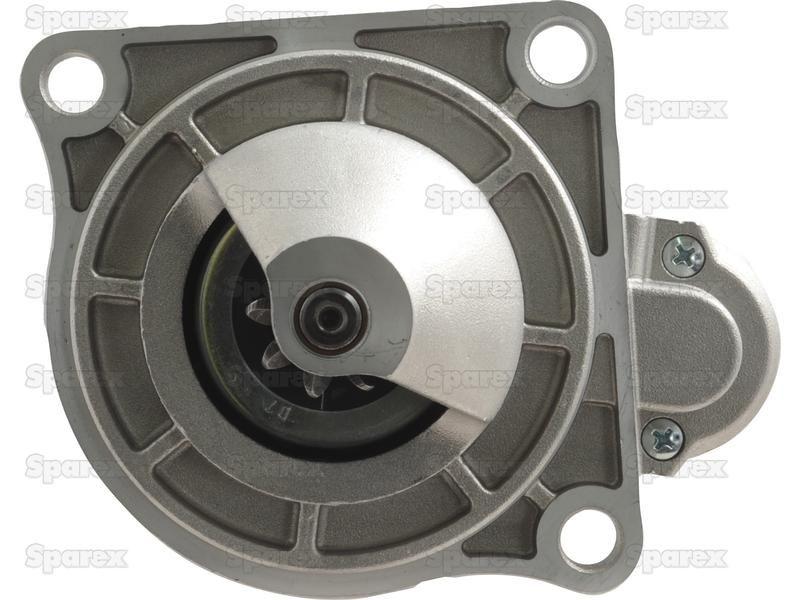

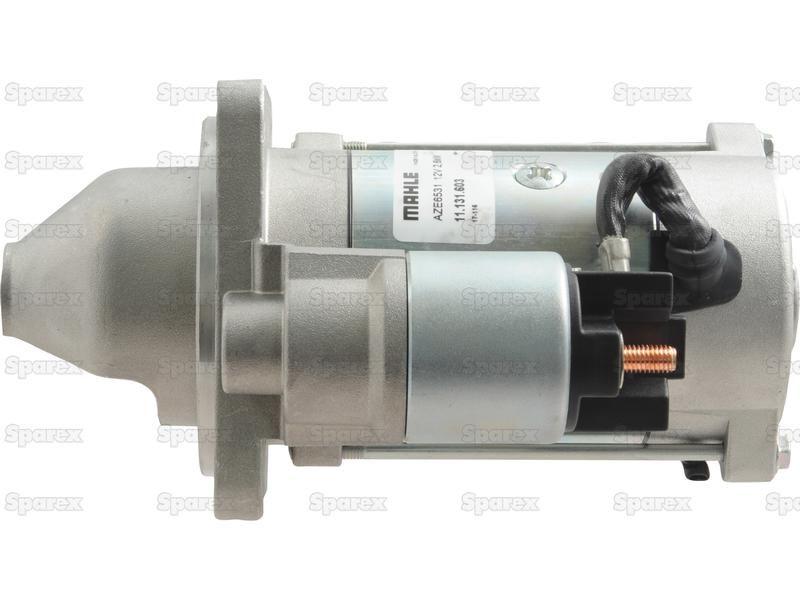

Starter Motor - 12V, 2.6Kw, Gear Reducted (Mahle) for Fiat L95 (L Series)
Part Number: S.127869Categories: Electrical Accessories
Part Number: S.127869
Grade: Replacement
Part Details
Starter Motor - 12V, 2.6Kw, Gear Reducted (Mahle)
Technical Information
| a Angle ° | -55 |
| A mm | 146 |
| B mm | 110 |
| Bell Opening | RH |
| Brand | Mahle |
| C mm | 30.5 |
| D mm | 35 |
| Distance Between Teeth mm | 14.7 |
| E mm | 12.2 |
| Fitting | 3 Hole Flange - RH Opening |
| Gear Reducted | Yes |
| Height mm | 168.3 |
| Kilowatts | 2.6 |
| Length from Front Mounting Face to Rear mm | 170 |
| Length mm | 323.9 |
| Mounting Hole mm | 12.2 |
| Number of Flange Holes | 3 |
| Number of Teeth | 9 |
| Outer Diameter of Battery Terminal mm | 7.8 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 168.3 |
Manufacturer Part Numbers
| Bosch |
|---|
| 1109450, 1223503, 1223504, 1362105, 986022550 |
| Case IH |
| 82980757 |
| Fiat |
| 2000318, 500338953, 5801441816, 99449112 |
| Ford New Holland |
| 2000318, 500338953, 5801441814, 5801441816, 82980757, 99449112 |
| Iseki |
| IS1263 |
| Iskra |
| IS1263 |
| IVECO |
| 500333269, 500338953, 5801441816 |
| Lester |
| 18950 |
| Lucas |
| LRS01976 |
| Magnetimar |
| 63522235, 63522235040, MSN2036 |
