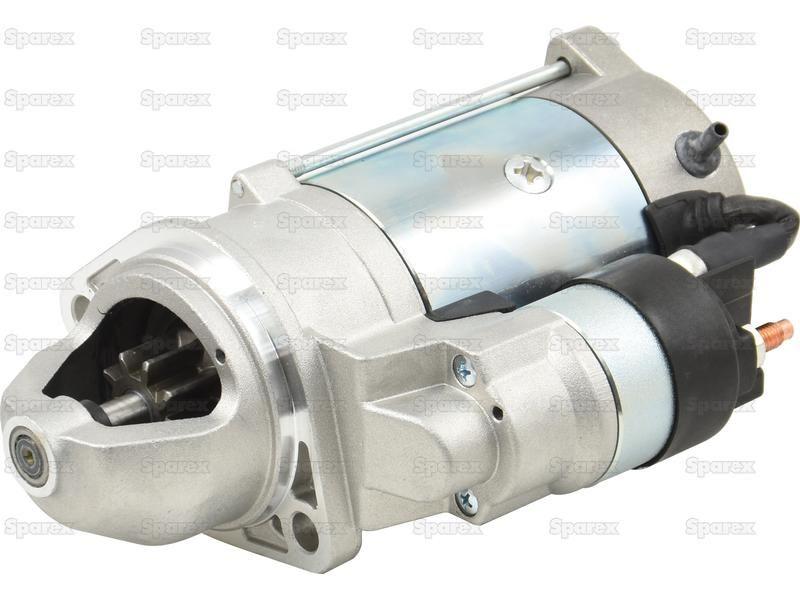

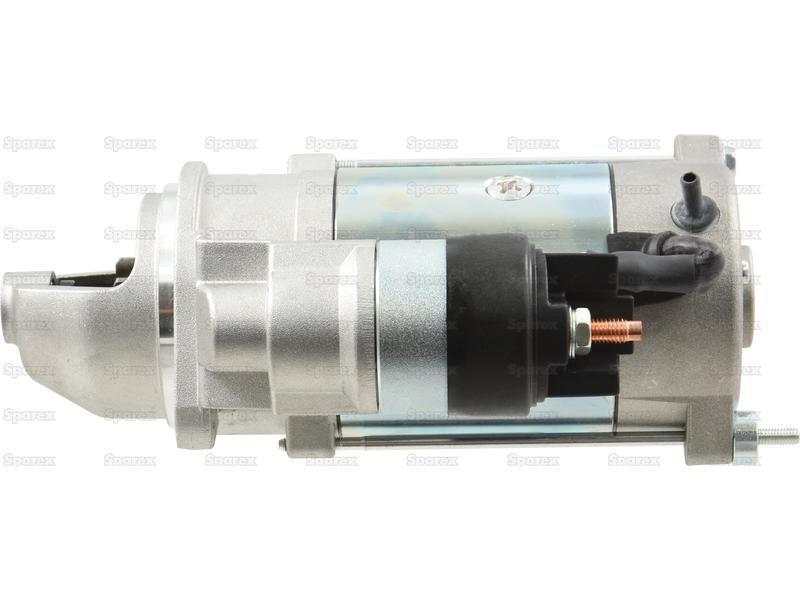

Starter Motor - 12V, 2.6Kw, Gear Reducted (Mahle) Deutz-Fahr, Iskra, Lester, Lucas
Part Number: S.148213Categories: Electrical Accessories
Part Number: S.148213
Grade: Replacement
Part Details
Starter Motor - 12V, 2.6Kw, Gear Reducted (Mahle) Starter Motor

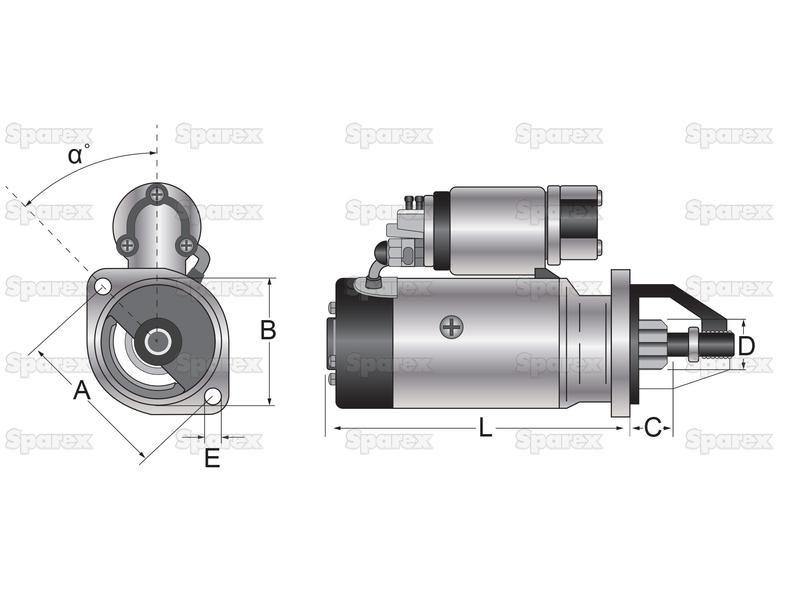

Technical Information
| a Angle ° | 35 |
| A mm | 105 |
| B mm | 82.5 |
| Bell Opening | LH |
| Brand | Mahle |
| C mm | 25.5 |
| D mm | 34.8 |
| Distance Between Teeth mm | 14.4 |
| E mm | 10.9 |
| Fitting | 2 Hole Flange - LH Opening |
| Gear Reducted | Yes |
| Height mm | 152.4 |
| Kilowatts | 2.6 |
| Length from Front Mounting Face to Rear mm | 205 |
| Length mm | 311.2 |
| Mounting Hole mm | 10.9 |
| Number of Flange Holes | 2 |
| Number of Teeth | 9 |
| Outer Diameter of Battery Terminal mm | 7.8 |
| Tariff Code | 8511500090 |
| Volts | 12V |
| Width mm | 222.3 |
Manufacturer Part Numbers
| Deutz-Fahr |
|---|
| 01181751, 01182124, 01182382, 01183599, 04300007 |
| Iskra |
| IS1217 |
| Lester |
| 18951 |
| Lucas |
| LRS01755 |
