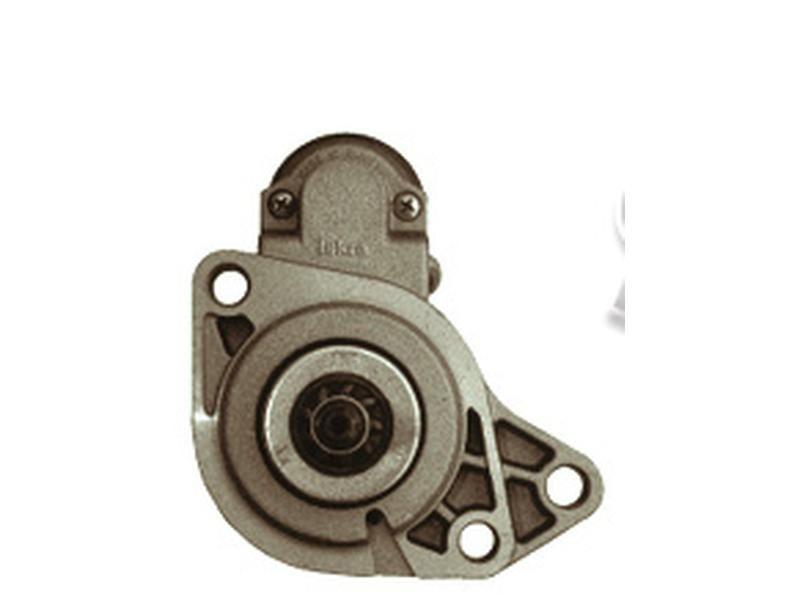

Starter Motor - 12V, 1.8Kw, Gear Reducted (Mahle) Bosch, Iskra, Lucas
Part Number: S.36147Categories: Electrical Accessories
Part Number: S.36147
Grade: Replacement
Part Details
Starter Motor - 12V, 1.8Kw, Gear Reducted (Mahle)
Technical Information
| a Angle ° | -40 |
| A mm | 111.4 |
| B mm | 76.2 |
| Bell Opening | Mahle |
| Brand | Mahle |
| C mm | 35.5 |
| D mm | 25.8 |
| Distance Between Teeth mm | 10.5 |
| E mm | 12.5 |
| Fitting | 3 Hole Flange |
| Gear Reducted | Yes |
| Kilowatts | 1.8 |
| Length from Front Mounting Face to Rear mm | 191 |
| Mounting Hole mm | 12.5 |
| Number of Flange Holes | 3 |
| Number of Teeth | 9 |
| Outer Diameter of Battery Terminal mm | 7.8 |
| Tariff Code | 8511400090 |
| Volts | 12V |
Manufacturer Part Numbers
| Bosch |
|---|
| 0001110076, 0001110077, 0001110098, 0001110099, 0986015970 |
| Iskra |
| IS0723 |
| Lucas |
| LRS00781 |
