Starter Motor - 12V, 1.4Kw, Gear Reducted (Sparex) for Kubota L3410 (L Series Compact)
Part Number: S.70501Categories: Electrical Accessories
Part Number: S.70501
Grade: Replacement
Part Details

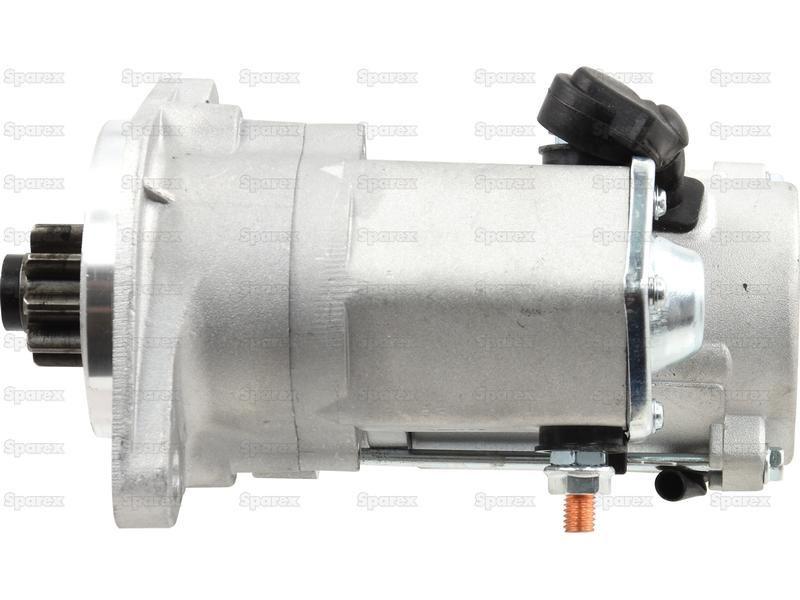

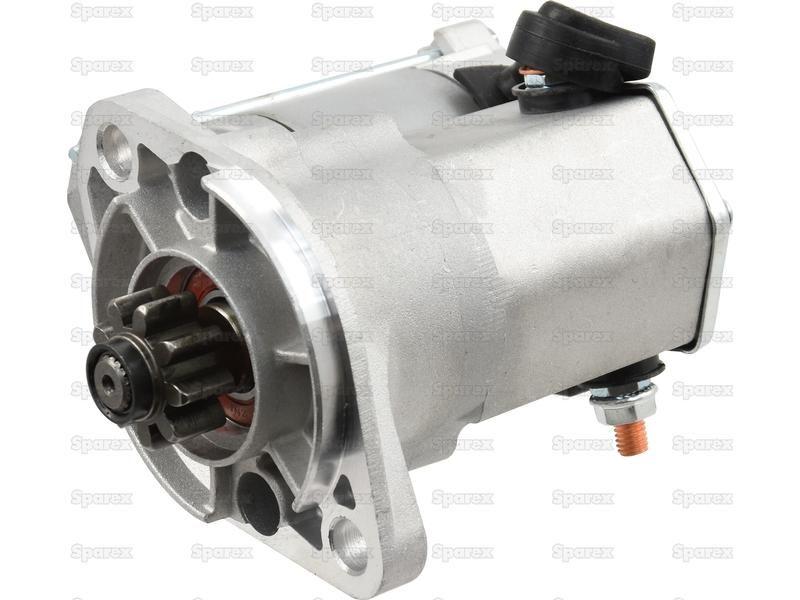

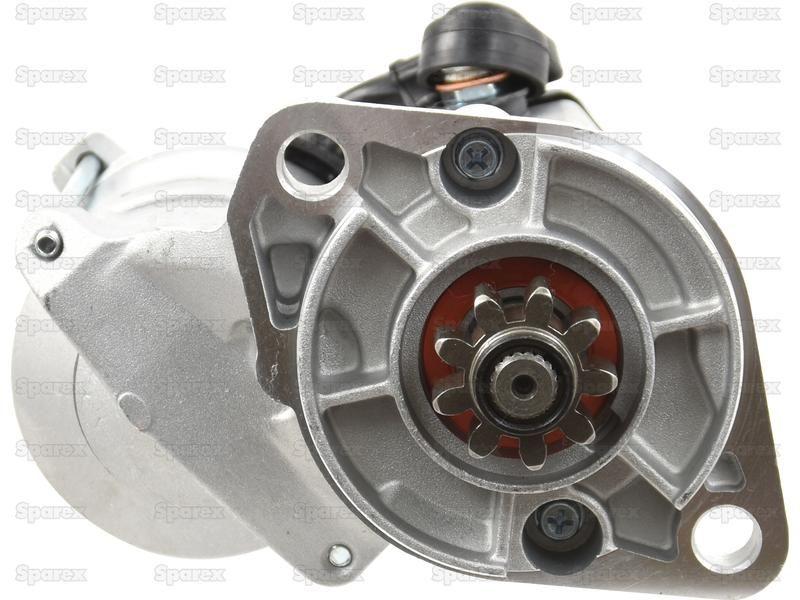

Starter Motor - 12V, 1.4Kw, Gear Reducted (Sparex)
Technical Information

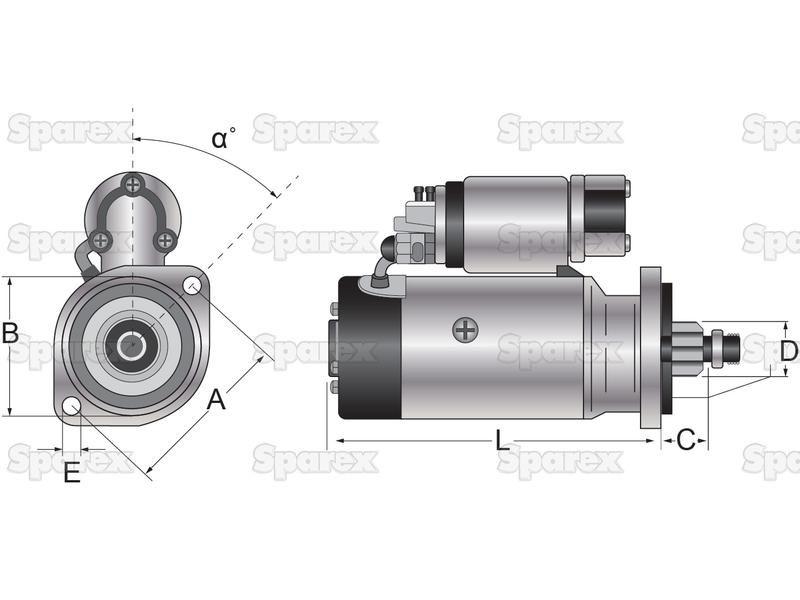

| A mm | 106 |
| B mm | 82.5 |
| Bell Opening | Sparex |
| Brand | Sparex |
| C mm | 24 |
| D mm | 35 |
| Distance Between Teeth mm | 14.2 |
| Earth Stud | No |
| Fitting | 2 Hole Flange |
| Gear Reducted | Yes |
| Height mm | 230 |
| Kilowatts | 1.4 |
| Length from Front Mounting Face to Rear mm | 145 |
| Length mm | 245 |
| Mounting Hole mm | 11.5 |
| Number of Flange Holes | 2 |
| Number of Teeth | 9 |
| Outer Diameter of Battery Terminal mm | 7.7 |
| Tariff Code | 8511400090 |
| Volts | 12V |
| Width mm | 180 |
Manufacturer Part Numbers
| Kubota |
|---|
| 15461-36010, 1546163013, 15461-63013, 1734163010, 17341-63010, 3407016800, 34070-16800 |
| Lester |
| 18144 |
| Nippon Denso |
| 0280006260, 028000-6260, 2280001020, 228000-1020 |
