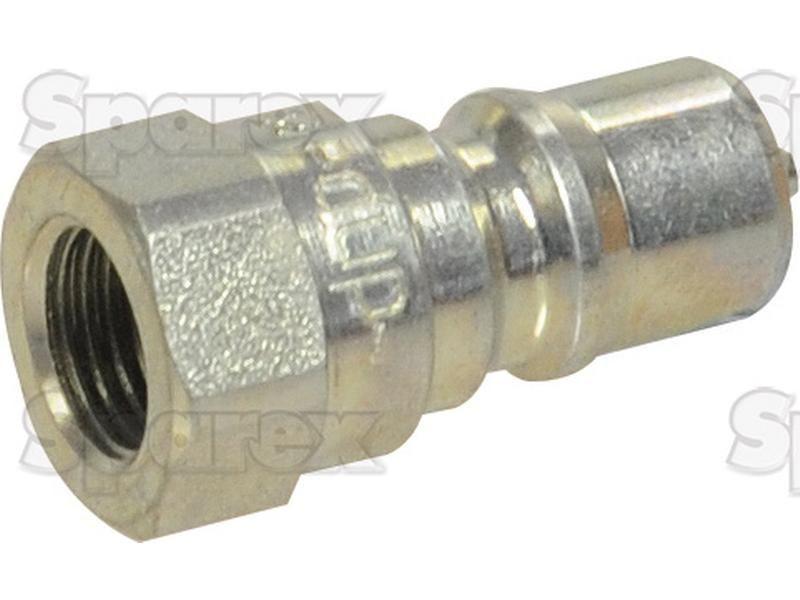

Sparex Quick Release Hydraulic Coupling Male 1/4'' Body x 1/4'' BSP Female Thread
Part Number: S.2695Categories: Hydraulics
Part Number: S.2695
Grade: Replacement
Part Details
Sparex Quick Release Hydraulic Coupling Male 1/4'' Body x 1/4'' BSP Female Thread
Technical Information
| Body size ins | 1/4 |
| Brand | Sparex |
| C mm | 38 |
| Coupler type | Standard Coupling With Poppet Valve |
| E ins | 1/4 |
| Flow rate litres per minute | 24 |
| H mm | 14.2 |
| Length mm | 38 |
| Male Female | Male |
| Material | Carbon Steel/ |
| Maximum Working Pressure bar | 160 |
| Nose Ø mm | 14.2 |
| Related Products | 2696 |
| Series | BG1 |
| Tariff Code | 7307199000 |
| Thread Male or Female | Female Thread |
| Thread size | 1/4 |
| Thread type | BSP |
