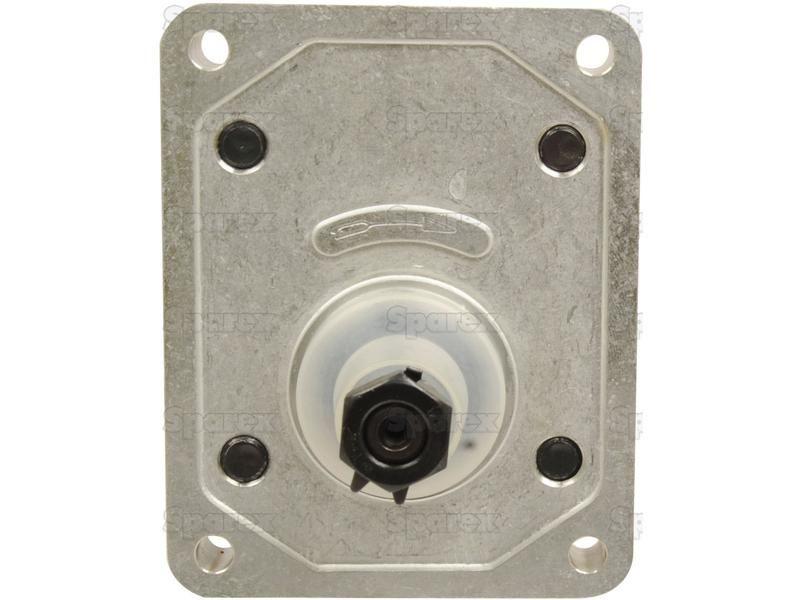

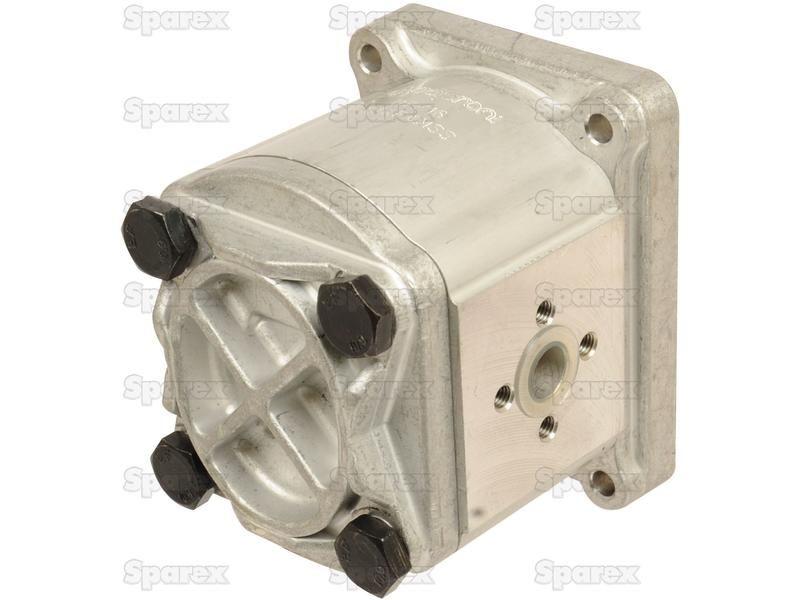

Single Hydraulic Pump for Fiat L95 (L Series)
Part Number: S.62218Categories: Hydraulics
Part Number: S.62218
Grade: Replacement
Part Details
Single Hydraulic Pump
Technical Information
| Brand | Sparex |

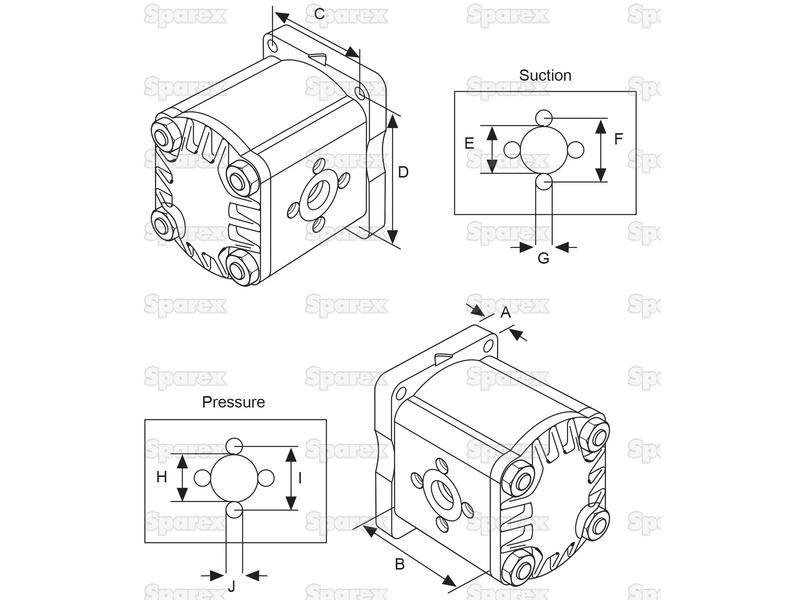

| Diagram specifications | A: 19, - B (mm): 105.9, - C: 71, - D: 96, - E: 19, - F: 40, - G: M8, - H: 14.2, - I: 30.2, - J: M6. |
| Front inlet hole fixing hole size | M8 |
| Front inlet hole fixing hole spacing | 40 |
| Front inlet hole size | 19 |
| Front outlet hole fixing hole size | M6 |
| Front outlet hole fixing hole spacing | 30.2 |
| Front outlet hole size | 14.2 |
| Inner max. gallon per minute | 9.91 |
| Inner maximium litres per minute | 37.5 |
| Length mm | 105.9 |
| Lip measurement | 19 |
| Pump rotation | Clockwise |
| Pump type | Single Pump |
| Related Products | 62484, 62485, 62598 |
| Seal Kit and Repair Kits | S.108374 |
| Side hole spacing | 96 |
| Tariff Code | 8413603190 |
| Top hole spacing | 71 |
Manufacturer Part Numbers
| Case IH |
|---|
| 5179728 |
| Fiat |
| 05129486, 05169039, 05179728, 5129486, 5169039, 5179728, 8282886 |
| Universal |
| PRD2216D |
