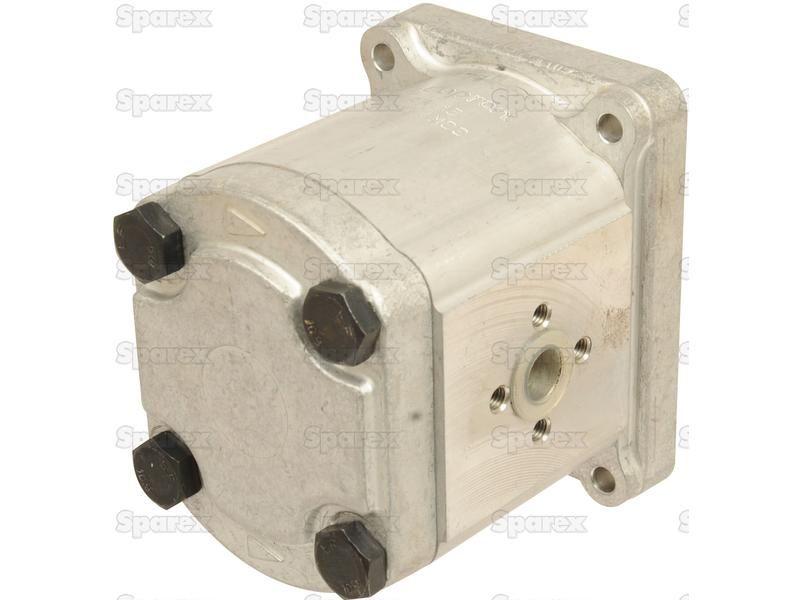

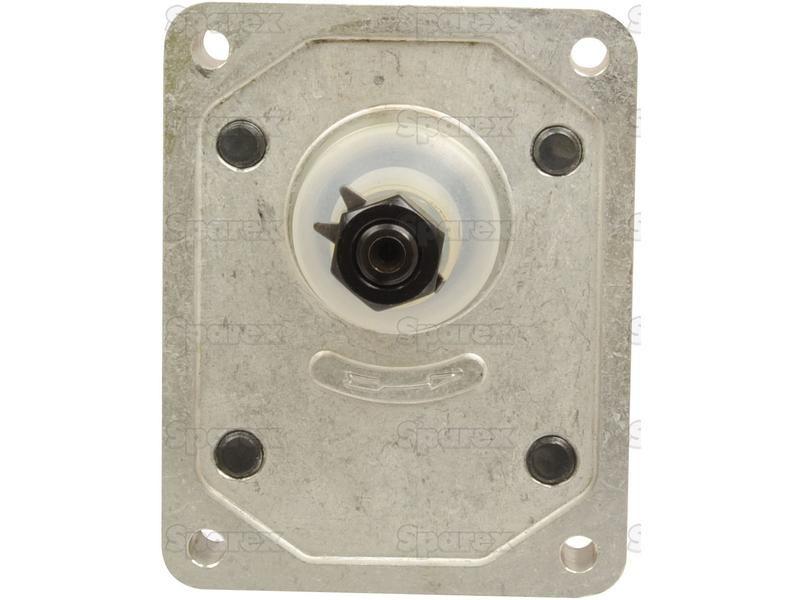

Single Hydraulic Pump for Universal 433

Part Number: S.62214Categories: Hydraulics
Single Hydraulic Pump for Universal 433
Single Hydraulic Pump for Universal 433
Single Hydraulic Pump for Universal 433
Single Hydraulic Pump for Universal 433

Part Number: S.62214

Grade: Replacement

Part Details

Single Hydraulic Pump

Technical Information

Brand Sparex
Diagram specifications A: 19, - B (mm): 68.04, - C: 71, - D: 96, - E: 19, - F: 40, - G: M8, - H: 14.2, - I: 30.2, - J: M6.
Front inlet hole fixing hole size M8
Front inlet hole fixing hole spacing 40
Front inlet hole size 19
Front outlet hole fixing hole size M6
Front outlet hole fixing hole spacing 30.2
Front outlet hole size 14.2
Inner max. gallon per minute 13.7
Inner maximium litres per minute 51
Length mm 68.04
Lip measurement 19
Overall length mm 101.04
Pump rotation Anti-Clockwise
Pump type Single Pump
Related Products 62484, 62485
Side hole spacing 96
Tariff Code 8413603190
Top hole spacing 71

Manufacturer Part Numbers

Case IH
10902831, 5129483, 5169772, 5179719, 8273957, 84530156
Fiat
05129483, 05169772, 05179719, 10902831, 14496504, 1901324, 1909915, 1930052, 1930055, 1930057, 1930068, 5086286, 5094391, 5113284, 5120297, 5120410, 5120849, 5129483, 5169772, 5179719, 569309, 76029024, 8273957, 8280127, 8282339, 84530156
Ford New Holland
5086286, 5094391, 5179719, 84530156
Universal
PRD2216S
