Single Hydraulic Pump for Steyr 8070

Part Number: S.34343Categories: Engine Fuel and Filters

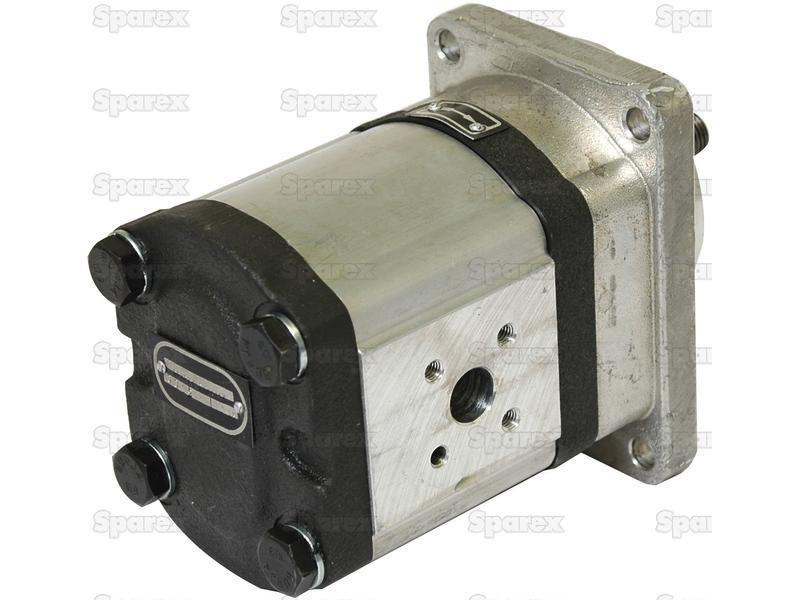

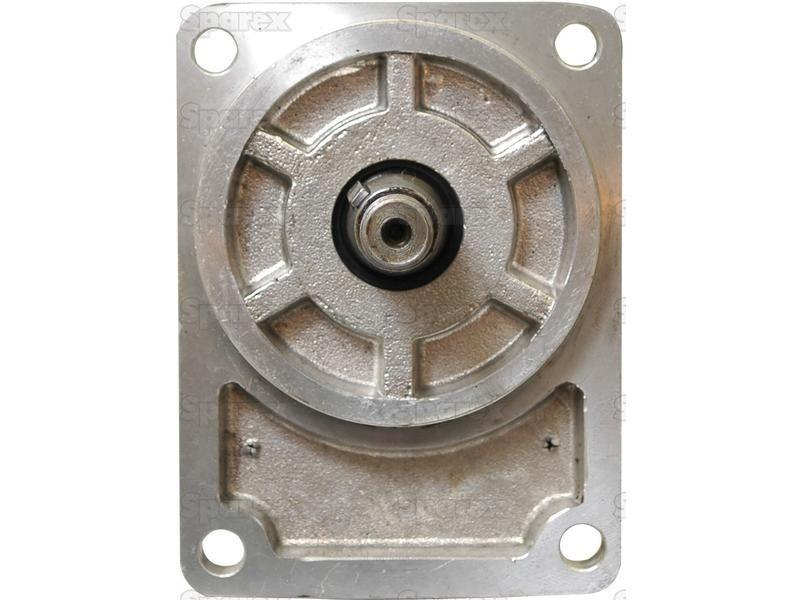

Single Hydraulic Pump for Steyr 8070
Single Hydraulic Pump for Steyr 8070
Single Hydraulic Pump for Steyr 8070
Single Hydraulic Pump for Steyr 8070

Part Number: S.34343

Grade: Replacement

Part Details

Single Hydraulic Pump Max. LPM: 48, Max. GPM: 12.68, Pump rotation: Anti-Clockwise.

Technical Information

Brand Sparex
Diagram specifications A: , - B (mm): 136, - C: 72, - D: 100, - E: 20, - F: 40, - G: M6, - H: 15, - I: 35, - J: M6.
Front inlet hole fixing hole size M6
Front inlet hole fixing hole spacing 40
Front inlet hole size 20
Front outlet hole fixing hole size M6
Front outlet hole fixing hole spacing 35
Front outlet hole size 15
Inner max. gallon per minute 12.68
Inner maximium litres per minute 48
Length mm 136
Pump rotation Anti-Clockwise
Pump type Single Pump
Side hole spacing 100
Tariff Code 8413603190
Top hole spacing 72

Manufacturer Part Numbers

Bosch
0510 645 300, 0510645300, 510645300
