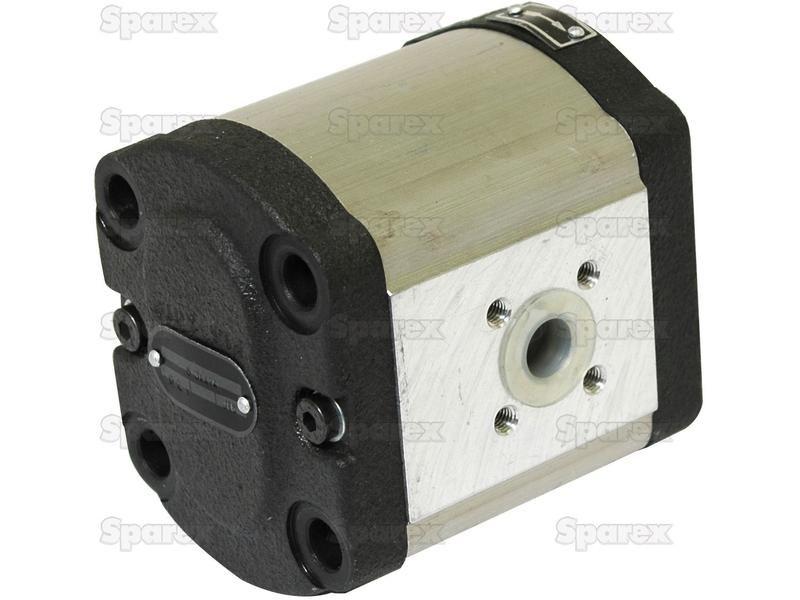

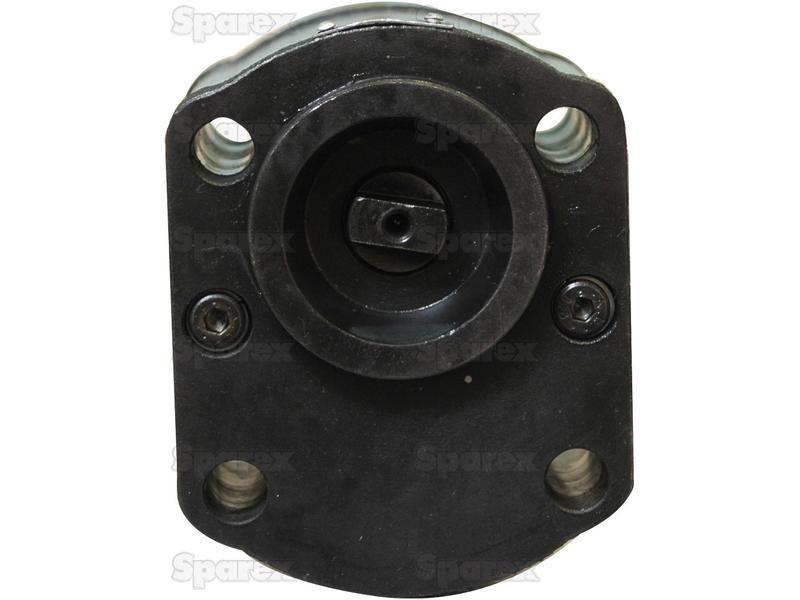

Single Hydraulic Pump for Steyr 8070
Part Number: S.34474Categories: Hydraulics
Part Number: S.34474
Grade: Replacement
Part Details
Single Hydraulic Pump
Technical Information
| Front outlet hole size | 15 |
| Inner max. GPM | 15.06 |
| Front inlet hole size | 20 |
| Front inlet hole fixing hole spacing | 35 |
| Front outlet hole fixing hole spacing | 40,M8 |
| Inner max. LPM | 57 |
| Top hole spacing | 60 |
| Side hole spacing | 60 |
| Tariff Code | 8413603190 |
| Length (mm) | 98.7 |
| Diagram specifications | : -, - B (mm): 98.7, - : 60, - : 60, - : 20, - : 35, - : M6, - : 15, - : 40, - : M8. |
| Pump rotation | Anti-Clockwise |
| Front inlet hole fixing hole size | M6 |
| Pump type | Single Pump |
| Brand | Sparex |
Manufacturer Part Numbers
| Bosch |
|---|
| 0510 615 321, 0510615321, 510615321 |
