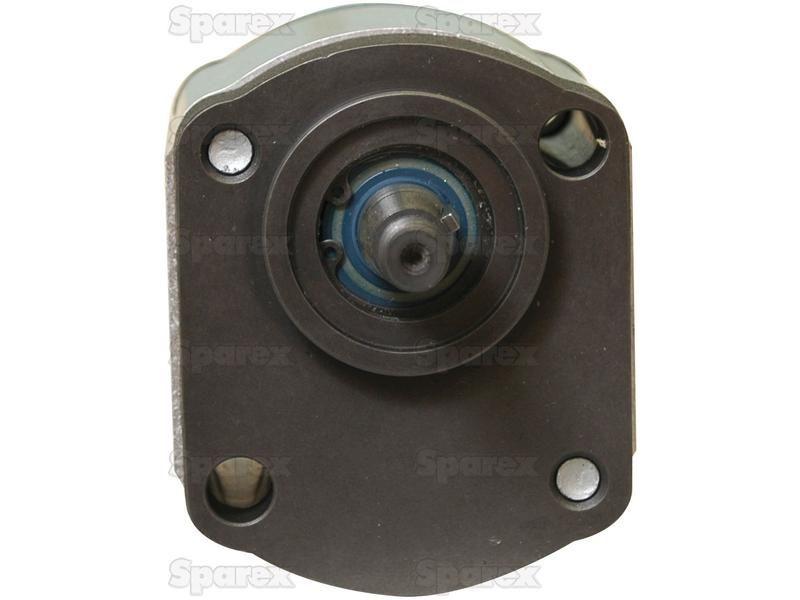

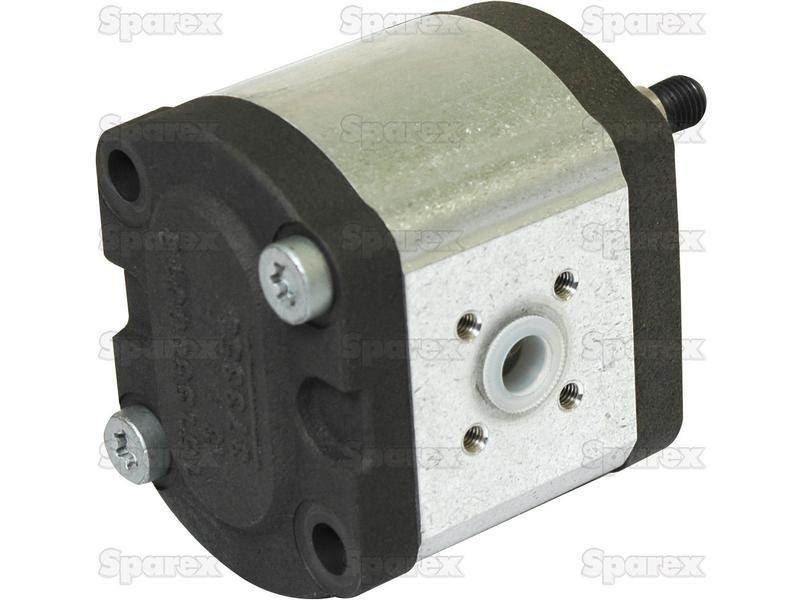

Single Hydraulic Pump for Steyr, Bosch
Part Number: S.34455Categories: Hydraulics
Part Number: S.34455
Grade: Replacement
Part Details
Single Hydraulic Pump Max. LPM: 38.5, Max. GPM: 10.17, Pump rotation: Anti-Clockwise.
Technical Information
| Brand | Sparex |
| Diagram specifications | A: , - B (mm): 93.8, - C: 60, - D: 60, - E: 20, - F: 40, - G: M6, - H: 15, - I: 35, - J: M6. |
| Front inlet hole fixing hole size | M6 |
| Front inlet hole fixing hole spacing | 40 |
| Front inlet hole size | 20 |
| Front outlet hole fixing hole size | M6 |
| Front outlet hole fixing hole spacing | 35 |
| Front outlet hole size | 15 |
| Inner max. gallon per minute | 10.17 |
| Inner maximium litres per minute | 38.5 |
| Length mm | 93.8 |
| Pump rotation | Anti-Clockwise |
| Pump type | Single Pump |
| Side hole spacing | 60 |
| Tariff Code | 8413603190 |
| Top hole spacing | 60 |
Models
| Steyr |
|---|
| 8090 (Various Series), 8100 (Various Series) |
Manufacturer Part Numbers
| Bosch |
|---|
| 0510 515 310, 510515310 |
