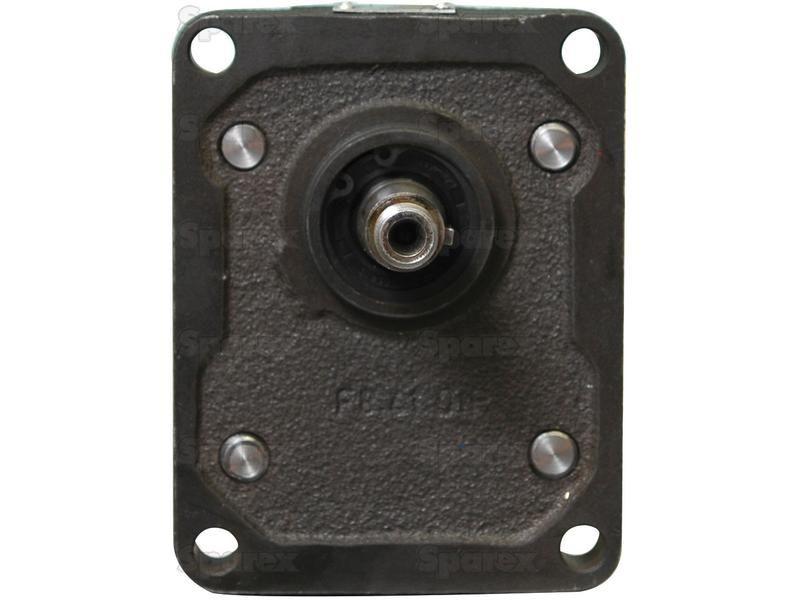

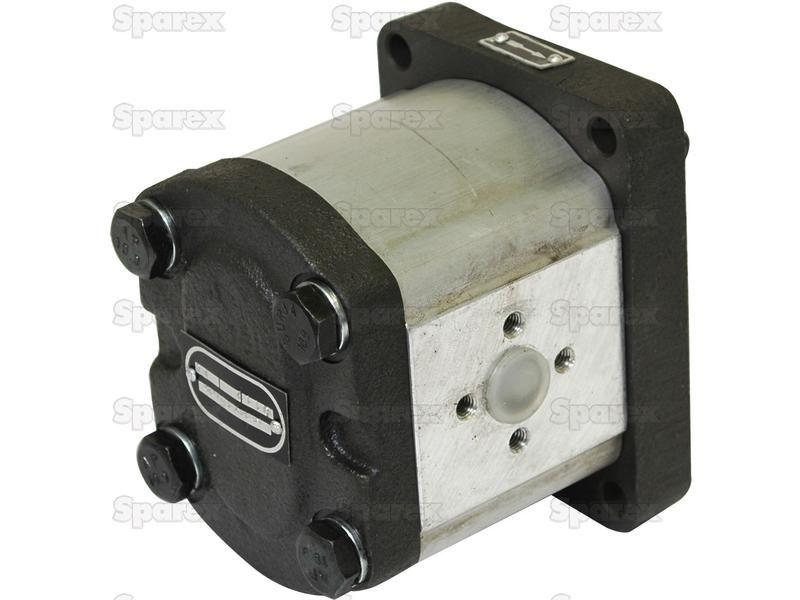

Single Hydraulic Pump for Fiat 85-90 (90 Series)
Part Number: S.34479Categories: Hydraulics
Part Number: S.34479
Grade: Replacement
Part Details
Single Hydraulic Pump
Technical Information
| Brand | Sparex |
| Diagram specifications | A: 19, - B (mm): 109.9, - C: 71, - D: 96, - E: 20, - F: 40, - G: M8, - H: 13.5, - I: 30.2, - J: M6. |
| Front inlet hole fixing hole size | M8 |
| Front inlet hole fixing hole spacing | 40 |
| Front inlet hole size | 20 |
| Front outlet hole fixing hole size | M6 |
| Front outlet hole fixing hole spacing | 30.2 |
| Front outlet hole size | 13.5 |
| Inner max. gallon per minute | 8.45 |
| Inner maximium litres per minute | 32 |
| Length mm | 109.9 |
| Lip measurement | 19 |
| Pump rotation | Anti-Clockwise |
| Pump type | Single Pump |
| Side hole spacing | 96 |
| Tariff Code | 8413603190 |
| Top hole spacing | 71 |
Manufacturer Part Numbers
| Bosch |
|---|
| 0510 625 318, 0510625318, 510625318 |
| Case IH |
| 5094391, 5129483, 5169772, 5179719, 84530156 |
| Fiat |
| 5129483, 5169772, 5179719, 84530156 |
| Ford New Holland |
| 84530156, 87721169 |
