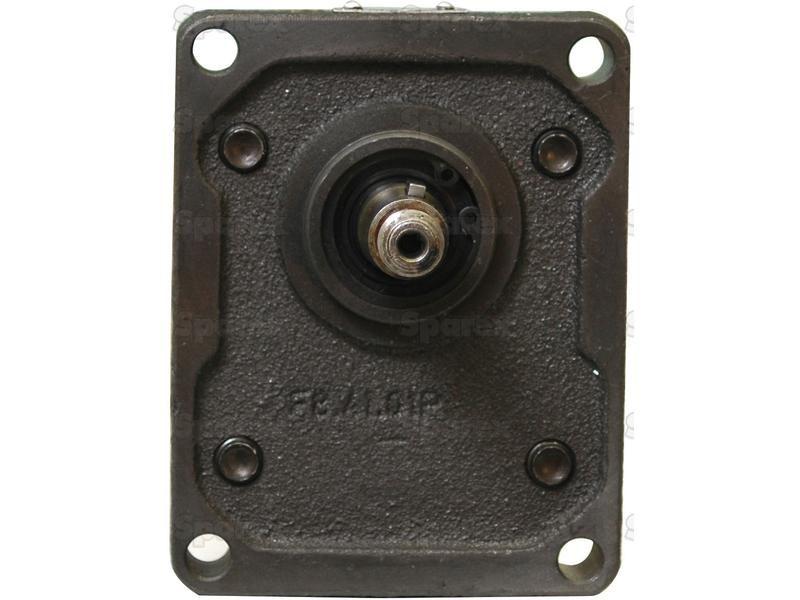

Single Hydraulic Pump for Fiat 85-90 (90 Series)

Part Number: S.34419Categories: Hydraulics
Single Hydraulic Pump for Fiat 85-90 (90 Series)
Single Hydraulic Pump for Fiat 85-90 (90 Series)
Single Hydraulic Pump for Fiat 85-90 (90 Series)
Single Hydraulic Pump for Fiat 85-90 (90 Series)

Part Number: S.34419

Grade: Replacement

Part Details

Single Hydraulic Pump

Technical Information

Brand Sparex
Diagram specifications A: 19, - B (mm): 117, - C: 71, - D: 96, - E: 20, - F: 40, - G: M8, - H: 13.5, - I: 30.2, - J: M6.
Front inlet hole fixing hole size M8
Front inlet hole fixing hole spacing 40
Front inlet hole size 20
Front outlet hole fixing hole size M6
Front outlet hole fixing hole spacing 30.2
Front outlet hole size 13.5
Inner max. gallon per minute 11.89
Inner maximium litres per minute 45
Length mm 117
Lip measurement 19
Pump rotation Anti-Clockwise
Pump type Single Pump
Seal Kit and Repair Kits S.62807
Side hole spacing 96
Tariff Code 8413603190
Top hole spacing 71

Manufacturer Part Numbers

Bosch
0510 725 331, 0510725331, 510725331
Case IH
5129488, 5169770, 5179714
Fiat
153634448, 47562399, 5093658, 5094394, 5113283, 5120850, 5129488, 5169770, 5179414, 5179711, 5179714, 8280131, 82987745, 84530154, 87716629, 87737605, 9967782
Landini
356740M91
