Single Hydraulic Pump for Deutz-Fahr DX3.90 (DX3 Series)
Part Number: S.34473Categories: Hydraulics
Part Number: S.34473
Grade: Replacement
Part Details

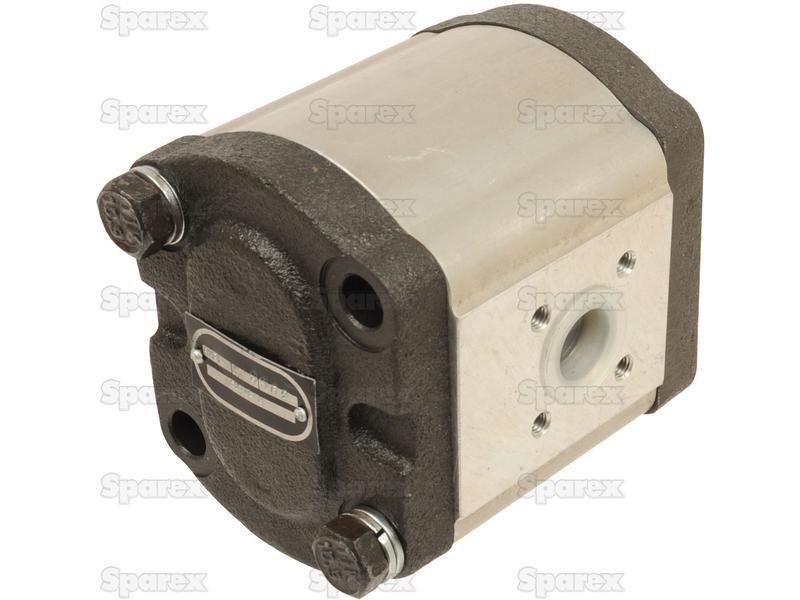

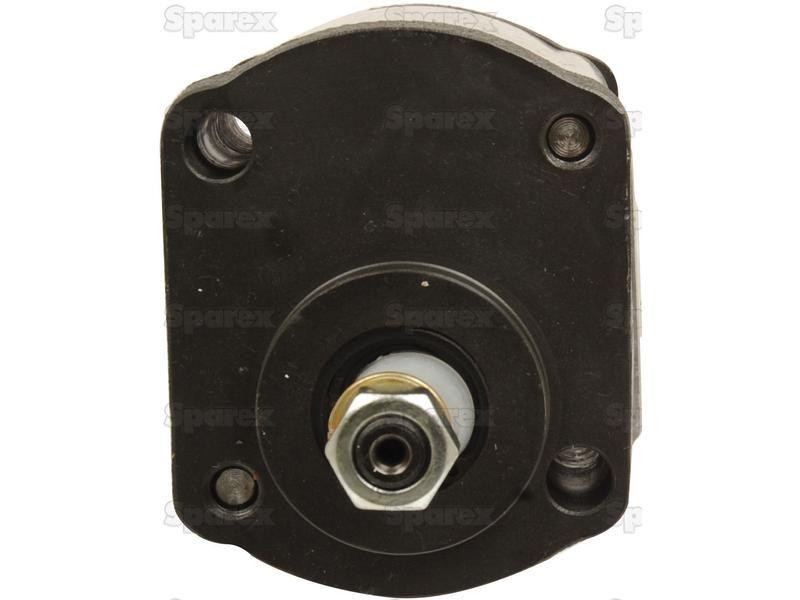

Single Hydraulic Pump
Technical Information
| Brand | Sparex |

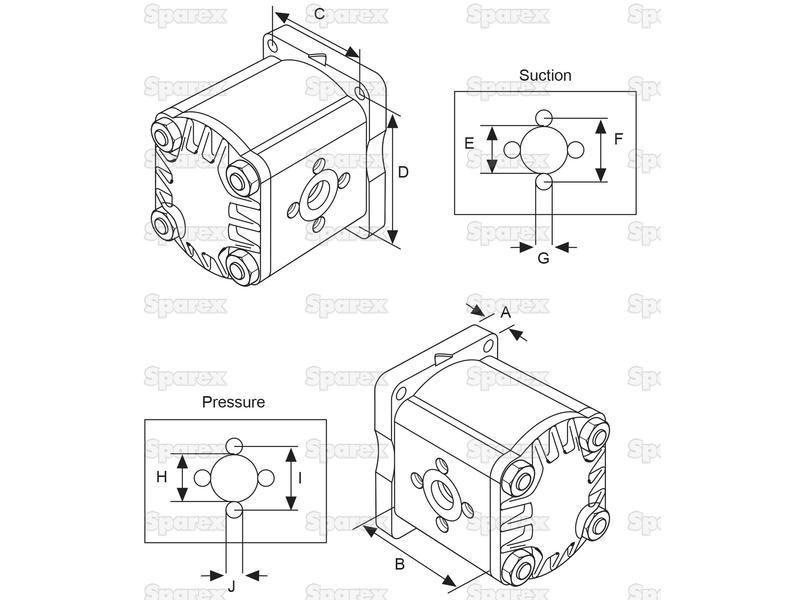

| Diagram specifications | A: , - B (mm): 107.1, - C: 60, - D: 60, - E: 20, - F: 40, - G: M6, - H: 15, - I: 35, - J: M6. |
| Front inlet hole fixing hole size | M6 |
| Front inlet hole fixing hole spacing | 40 |
| Front inlet hole size | 20 |
| Front outlet hole fixing hole size | M6 |
| Front outlet hole fixing hole spacing | 35 |
| Front outlet hole size | 15 |
| Inner max. gallon per minute | 15.06 |
| Inner maximium litres per minute | 57 |
| Length mm | 107.1 |
| Pump rotation | Anti-Clockwise |
| Pump type | Single Pump |
| Side hole spacing | 60 |
| Tariff Code | 8413603190 |
| Top hole spacing | 60 |
Manufacturer Part Numbers
| Bosch |
|---|
| 0510 615 318, 510615318 |
| Deutz-Fahr |
| 01175997, 01262591, 01262644, 02333071, 02382915, 04309355, 04345363 |
| Fendt |
| G278941100010 |
