Single Hydraulic Pump for Deutz-Fahr, Bosch
Part Number: S.34470Categories: Hydraulics
Part Number: S.34470
Grade: Replacement
Part Details
Single Hydraulic Pump Max. LPM: 16.5, Max. GPM: 4.36, Pump rotation: Clockwise.
Technical Information
| Brand | Sparex |

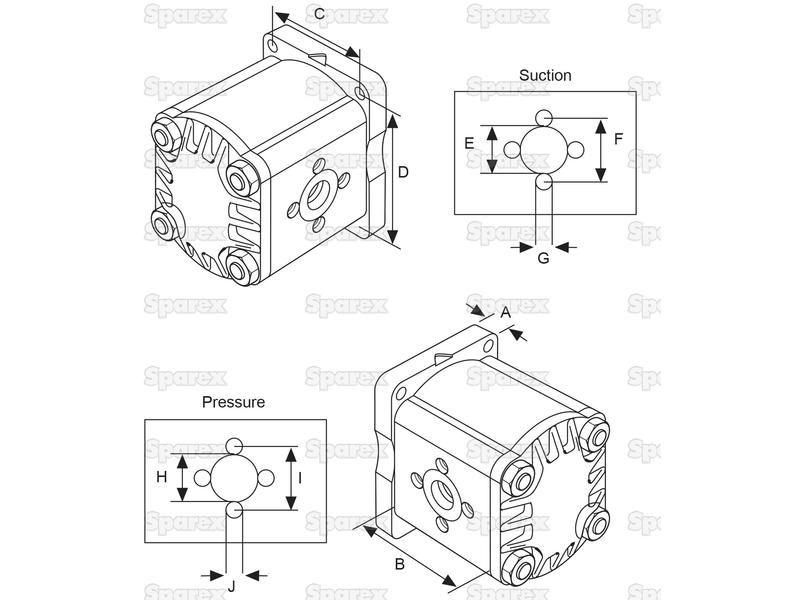

| Diagram specifications | A: , - B (mm): 76.2, - C: 60, - D: 60, - E: 20, - F: 40, - G: M6, - H: 15, - I: 35, - J: M8. |
| Front inlet hole fixing hole size | M6 |
| Front inlet hole fixing hole spacing | 40 |
| Front inlet hole size | 20 |
| Front outlet hole fixing hole size | M8 |
| Front outlet hole fixing hole spacing | 35 |
| Front outlet hole size | 15 |
| Inner max. gallon per minute | 4.36 |
| Inner maximium litres per minute | 16.5 |
| Length mm | 76.2 |
| Pump rotation | Clockwise |
| Pump type | Single Pump |
| Side hole spacing | 60 |
| Tariff Code | 8413603190 |
| Top hole spacing | 60 |
Models
| Deutz-Fahr |
|---|
| DX 140, DX 160, DX7.10 (DX7 Series) |
Manufacturer Part Numbers
| Bosch |
|---|
| 0510 615 008, 0510615008, 510615008 |
| Deutz-Fahr |
| 01173717 |
