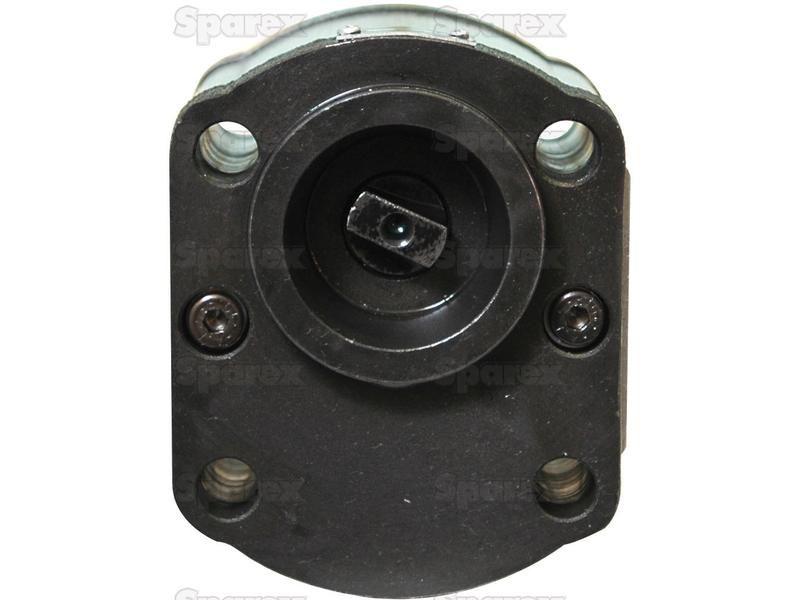

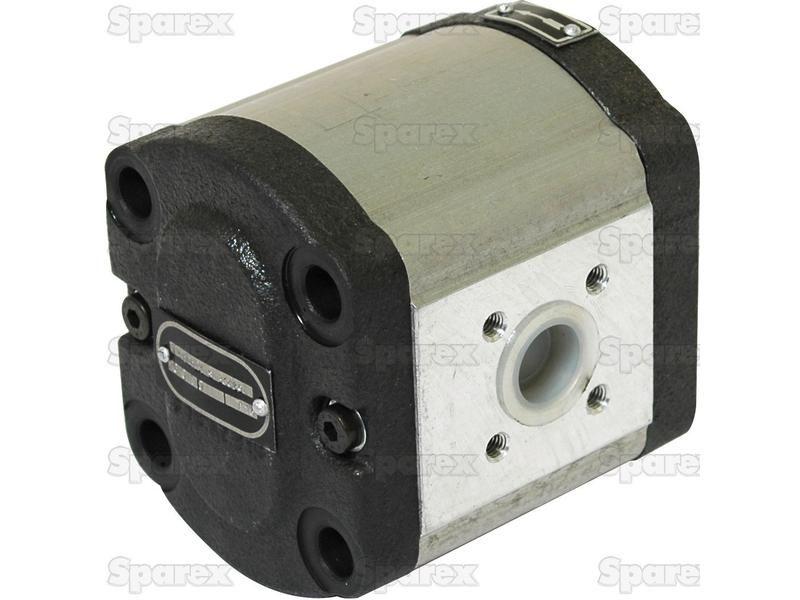

Single Hydraulic Pump for Deutz-Fahr, Bosch

Part Number: S.34469Categories: Hydraulics
Single Hydraulic Pump for Deutz-Fahr, Bosch
Single Hydraulic Pump for Deutz-Fahr, Bosch
Single Hydraulic Pump for Deutz-Fahr, Bosch
Single Hydraulic Pump for Deutz-Fahr, Bosch

Part Number: S.34469

Grade: Replacement

Part Details

Single Hydraulic Pump Max. LPM: 48, Max. GPM: 12.68, Pump rotation: Clockwise.

Technical Information

Brand Sparex

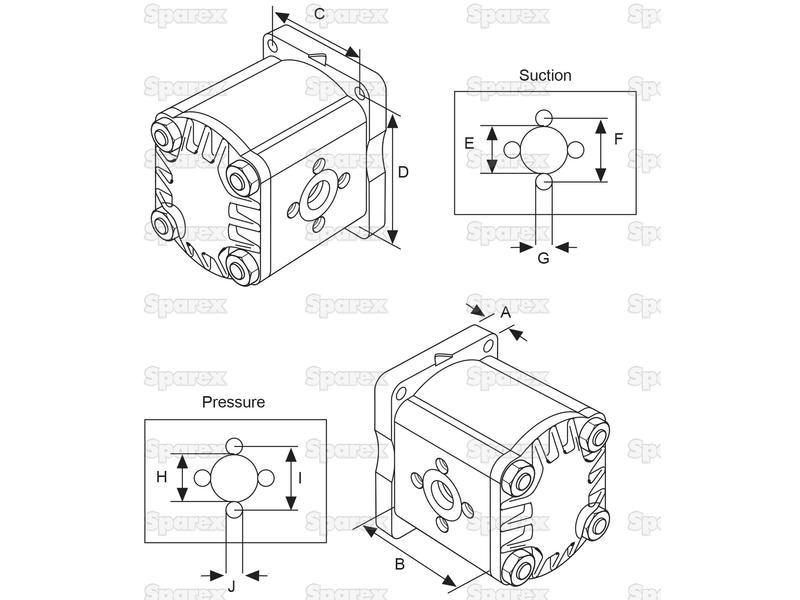

Diagram specifications A: , - B (mm): 93.7, - C: 60, - D: 60, - E: 20, - F: 40, - G: M6, - H: 15, - I: 35, - J: M6.
Front inlet hole fixing hole size M6
Front inlet hole fixing hole spacing 40
Front inlet hole size 20
Front outlet hole fixing hole size M6
Front outlet hole fixing hole spacing 35
Front outlet hole size 15
Inner max. gallon per minute 12.68
Inner maximium litres per minute 48
Length mm 93.7
Pump rotation Clockwise
Pump type Single Pump
Side hole spacing 60
Tariff Code 8413603190
Top hole spacing 60

Models

Deutz-Fahr
DX 140, DX 145, DX 160

Manufacturer Part Numbers

Bosch
0510 615 007, 0510615007, 510615007
Deutz-Fahr
01172790
