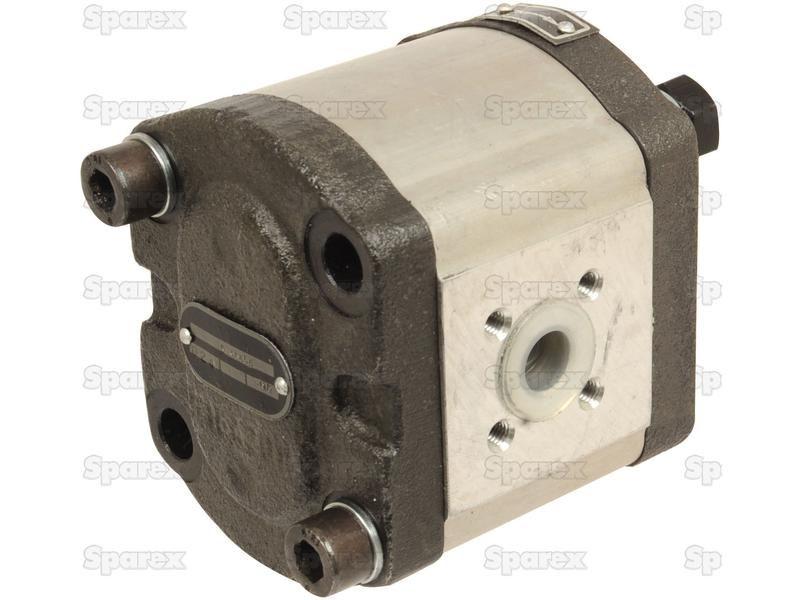

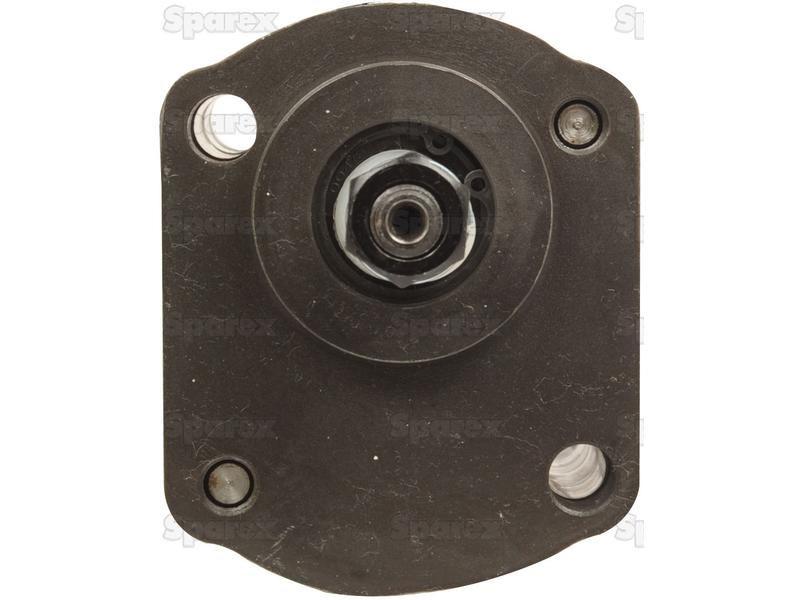

Single Hydraulic Pump for Fendt
Part Number: S.34454Categories: Hydraulics
Part Number: S.34454
Grade: Replacement
Part Details
Single Hydraulic Pump
Technical Information
| Brand | Sparex |
| Diagram specifications | A: , - B (mm): 102.1, - C: 60, - D: 60, - E: 20, - F: 40, - G: M6, - H: 15, - I: 35, - J: M6. |
| Front inlet hole fixing hole size | M6 |
| Front inlet hole fixing hole spacing | 40 |
| Front inlet hole size | 20 |
| Front outlet hole fixing hole size | M6 |
| Front outlet hole fixing hole spacing | 35 |
| Front outlet hole size | 15 |
| Inner max. gallon per minute | 8.72 |
| Inner maximium litres per minute | 33 |
| Length mm | 102.1 |
| Pump rotation | Anti-Clockwise |
| Pump type | Single Pump |
| Side hole spacing | 60 |
| Tariff Code | 8413603190 |
| Top hole spacing | 60 |
Models
| Fendt |
|---|
| F 225 GT, FARMER 3, FARMER 3 S, FARMER 4, FAVORIT 610, FAVORIT 610 S, FAVORIT 611, FAVORIT 611 SA, FAVORIT 612, FAVORIT 612 SA, FAVORIT 614, FAVORIT 614 SA |
Manufacturer Part Numbers
| Bosch |
|---|
| 0510 515 309, 510515309 |
| Deutz-Fahr |
| 01174516, 01262592, 01262637, 02308661 |
| Fendt |
| G150403101012 |
