Single Hydraulic Pump for Lamborghini 874-90T (Various Series)
Part Number: S.34418Categories: Hydraulics
Part Number: S.34418
Grade: Replacement
Part Details
Single Hydraulic Pump
Technical Information
| Brand | Sparex |

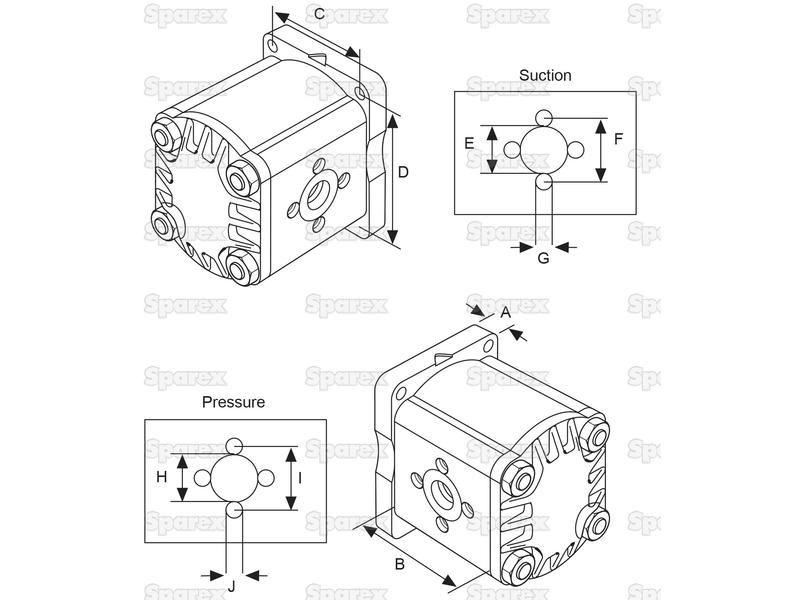

| Diagram specifications | A: 15, - B (mm): 112.9, - C: 60, - D: 60, - E: 20, - F: 40, - G: M6, - H: 15, - I: 35, - J: M6. |
| Front inlet hole fixing hole size | M6 |
| Front inlet hole fixing hole spacing | 40 |
| Front inlet hole size | 20 |
| Front outlet hole fixing hole size | M6 |
| Front outlet hole fixing hole spacing | 35 |
| Front outlet hole size | 15 |
| Inner max. gallon per minute | 14.86 |
| Inner maximium litres per minute | 56.25 |
| Length mm | 112.9 |
| Lip measurement | 15 |
| Pump rotation | Clockwise |
| Pump type | Single Pump |
| Side hole spacing | 60 |
| Tariff Code | 8413603190 |
| Top hole spacing | 60 |
Manufacturer Part Numbers
| Bosch |
|---|
| 0510 715 008, 0510715008, 510715008 |
| Deutz-Fahr |
| 245297800, 245396200, 245396300, 25297800 |
