Single Hydraulic Pump for Case IH 745XL
Part Number: S.34538Categories: Hydraulics
Part Number: S.34538
Grade: Replacement
Part Details
Single Hydraulic Pump
Technical Information
| Brand | Sparex |

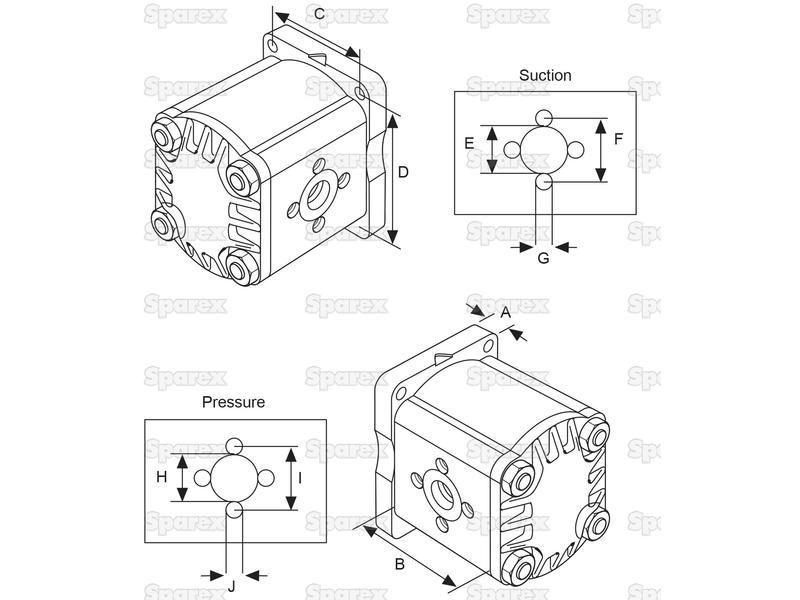

| Diagram specifications | A: , - B (mm): 104.2, - C: 60, - D: 60, - E: 20, - F: 40, - G: M6, - H: 15, - I: 35, - J: M6. |
| Front inlet hole fixing hole size | M6 |
| Front inlet hole fixing hole spacing | 40 |
| Front inlet hole size | 20 |
| Front outlet hole fixing hole size | M6 |
| Front outlet hole fixing hole spacing | 35 |
| Front outlet hole size | 15 |
| Inner max. gallon per minute | 6.34 |
| Inner maximium litres per minute | 24 |
| Length mm | 104.2 |
| Pump rotation | Anti-Clockwise |
| Pump type | Single Pump |
| Side hole spacing | 60 |
| Tariff Code | 8413603190 |
| Top hole spacing | 60 |
Manufacturer Part Numbers
| Bosch |
|---|
| 0510415311, 0510415313 |
| Case IH |
| 1986963C1, 3057395R91, 3057395R92, 31315R92, 3142097R91, 3145248R93, G131861010010, G225860010020 |
| Fendt |
| G131861010010, G225860010020, G225860010021, G231941010010 |
| John Deere |
| AL10681, AL16301, AL37753 |
