S.162710

Part Number: S.162710Categories: Electrical Accessories
S.162710
S.162710
S.162710
S.162710
S.162710
S.162710
S.162710
S.162710
S.162710
S.162710
S.162710
S.162710

Part Number: S.162710

Grade: Replacement

Part Details

Technical Information

Battery on standby 15 Hours
Battery type 3.7V, 4400mAh lithium battery

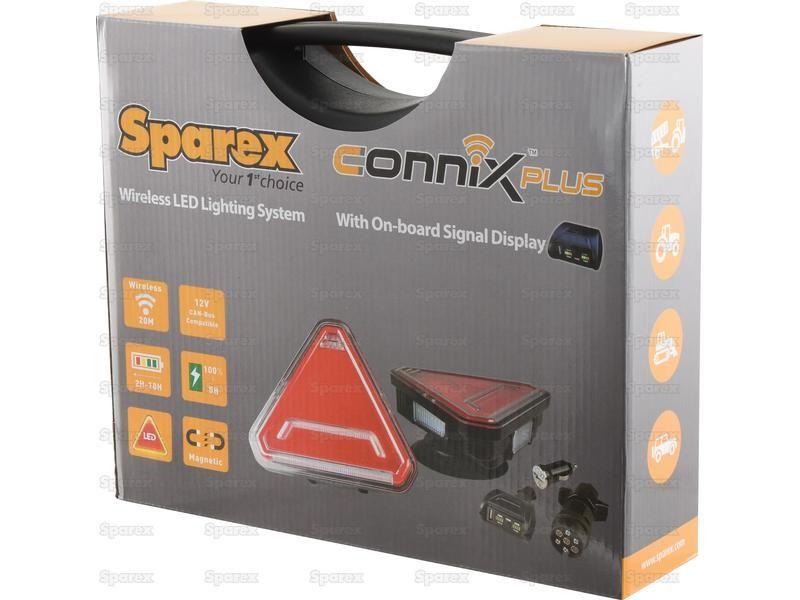

Brand Sparex (Connix Plus)
Bulb type LED
Certification ECE R10.05, EMC, CE, RoHS
Charging time 5 Hours
Connectivity Digital (2.4GHz Wireless)

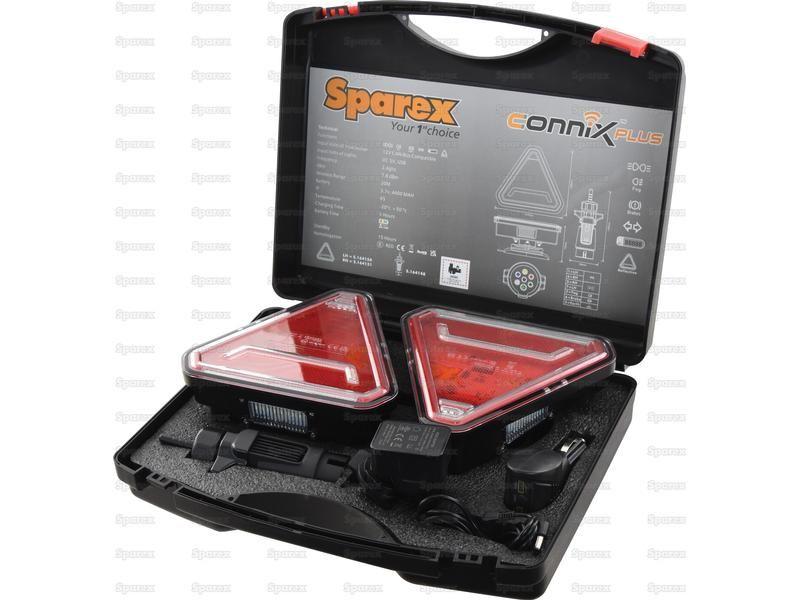

Contains 1 x S.164150 x 1 LH Rear Light, 1 x S.164151 RH Rear Light & 1 x S.164148 Transmitter
Fitting Magnetic
Fixing Magnetic
Function 6, Brake / Tail / Indicator / Fog / Number Plate / Reflector
Homologated ECE Reg 10, E-Approved, CE RoHS
IP Rating IP65
Lumens Effective Indicator: 118, Tail: 15, Brake: 115, Fog: 84
Lumens Raw Indicator: 142, Tail: 18, Brake: 138, Fog: 100
Lux Value Indicator: 200cd, Tail: 20cd, Brake: 160cd, Fog: 400cd
Maximum transmitting distance meters 20m
Notes Troubleshooting for Connix™ - 1. Ensure 7 pin transmitter is firmly fitted into the 7 pin socket. - 2. Ensure antenna is fitted to the 7 pin transmitter correctly and securely. - 3. Ensure the electrics and lights on vehicle are fully functional and in good working orders. - 4. Check Connix™ light battery is fully charged - 5. Ensure Connix™ is paired to the correct 7 pin transmitter. If in doubt, repeat the pairing process, refer to user manual. - 6. If Connix™ is showing any sign of damage, replace if required. - 7. Always consult your vehicle owner’s manual on compatibility with trailer lighting. - 8. Ensure LH (left), RH (right) lights are positioned and fitted correctly on the vehicle.
Related Products 164148, 164150, 164151
Run time 10 Hours Rear Light, 10 Hours Number Plate, 3 Hours Indicator, 3 Hours Brake
Tariff Code 8512200030
Temperature Range 20°c to 50°c
Volts 12V (DC)
Watts Indicator: 18W, Tail: 4W, Brake: 9.6W, Fog: 6.8W
