S Tine 32x12x550mm for Universal VARIOUS
Part Number: S.77124Categories: Cultivation, Tillage
Part Number: S.77124
Grade: Replacement
Part Details

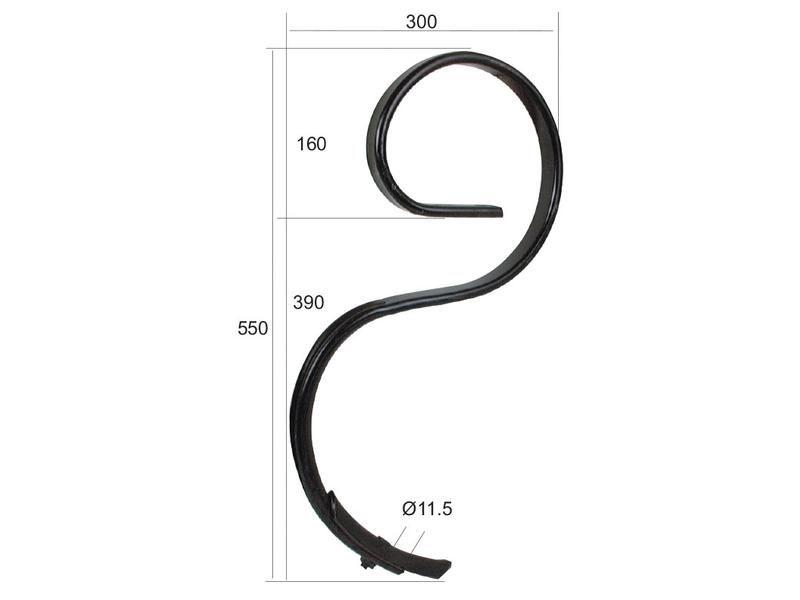

S Tine 32x12x550mm Overall height: 550mm, Width of spring: 300mm, Height of spring: 160mm, Height to frame: 390mm, Frame mounting hole Ø: 12.5mm, Point hole Ø: 11.5mm, Fitted with: S.77125 (5mm Point).
Technical Information
| A mm | 550 |
| B mm | 300 |
| Brand | Sparex |
| C mm | 160 |
| D mm | 390 |
| F Ø mm | 12.5 |
| Fitted with | S.77125 (5mm Point) |
| Frame mounting hole Ø mm | 12.5 |
| G Ø mm | 11.5 |
| Height of spring mm | 160 |
| Height to frame mm | 390 |
| Overall height mm | 550 |
| Point hole Ø mm | 11.5 |
| Related Products | 22328, 74822, 77118, 77119, 77125, 77130, 77260, 77767, 78095, 79377 |
| Section mm | 32x12 |
| Tariff Code | 8432900000 |
| Thickness mm | 12 |
| Width of spring mm | 300 |
