S Tine 32x10x560mm for Rau POLYMAG
Part Number: S.78685Categories: Cultivation, Tillage
Part Number: S.78685
Grade: Replacement
Part Details

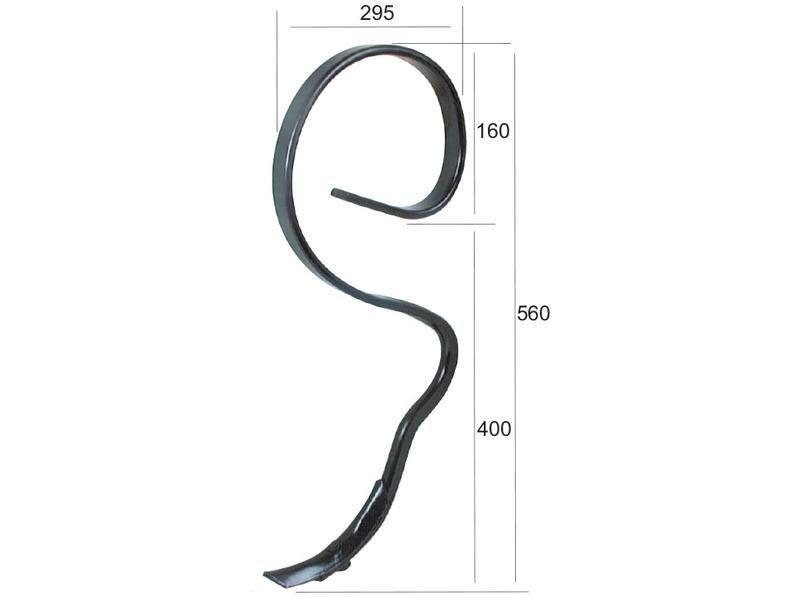

S Tine 32x10x560mm Overall height: 560mm, Width of spring: 295mm, Height of spring: 160mm, Height to frame: 400mm, Frame mounting hole Ø: 13.5mm, Point hole Ø: 11.5mm, Fitted with: S.78683 (5mm Point).
Technical Information
| A mm | 560 |
| B mm | 295 |
| Brand | Sparex |
| C mm | 160 |
| D mm | 400 |
| F Ø mm | 13.5 |
| Fitted with | S.78683 (5mm Point) |
| Frame mounting hole Ø mm | 13.5 |
| G Ø mm | 11.5 |
| Height of spring mm | 160 |
| Height to frame mm | 400 |
| OEM Primary Reference | CP12144 |
| Overall height mm | 560 |
| Point hole Ø mm | 11.5 |
| Related Products | 22328, 77118, 77119, 77127, 78683, 79397 |
| Section mm | 32x10 |
| Tariff Code | 8432900000 |
| Thickness mm | 10 |
| Width of spring mm | 295 |
Manufacturer Part Numbers
| Rau |
|---|
| CP12144 |
