Raw Edge Moulded Cogged Belt - AVX Section - Belt No. AVX13x1200 for Massey Ferguson 765 (Pre 100 Series (1947 - 65))
Part Number: S.18642Categories: Engine Fuel and Filters
Part Number: S.18642
Grade: Replacement
Part Details
Raw Edge Moulded Cogged Belt - AVX Section - Belt No. AVX13x1200
Technical Information
| Width (ins) | 1/2 |
| Depth (mm) | 10 |
| Inside length Li (mm) | 1137 |
| Effective Length (mm) | 1182 |
| Pitch Length (Lp) (Lw): | 1182 |
| Datum length LD (mm) | 1182 |
| Outside length La (mm) | 1200 |
| Width (mm) | 13 |

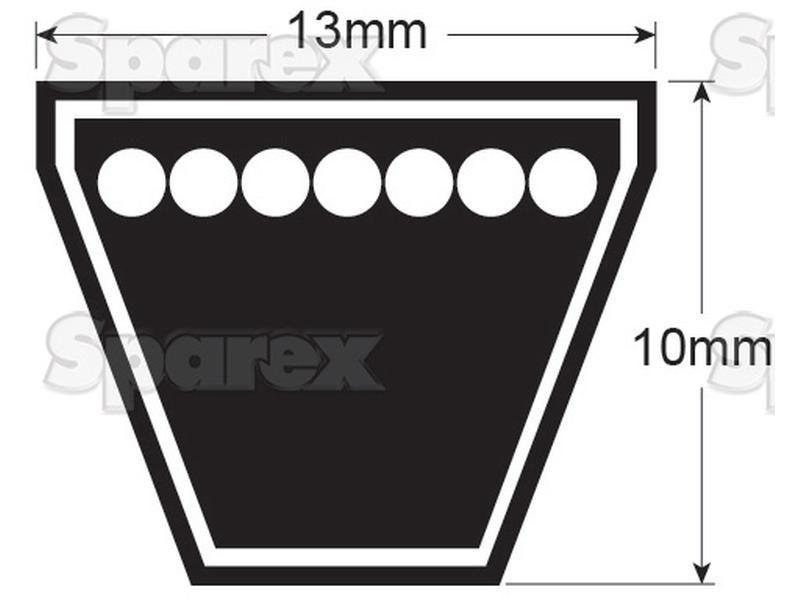

| Top Width x Depth | 13 x 10mm (1/2'' x 3/8'') |
| Related products | 14683,18739 |
| Depth ins | 3/8 |
| Tariff Code | 4010390010 |
| Inside length Li ins | 45 |
| Outside length La (ins) | 47 |
| Effective Length (ins) | 47 |
| Section | AVX13 |
| Belt No. | AVX13x1200 |
| Type | Raw Edge Moulded Cogged Fan Belt |
| Brand | Sparex (Agribelt) |
Manufacturer Part Numbers
| Allis Chalmers |
|---|
| 71166813V |
| Belt References |
| AVX13X1200 |
| Case IH |
| 3228279R1, 3328279R1 |
| Deutz-Fahr |
| 01180150 |
| Fendt |
| X696624200000 |
| Fiat |
| 4816716, 500370647 |
| Landini |
| 2614B145, 2614B644, 2614B645, 3612115M1, 3637597M1, 3639683M1, X69662420000 |
| Leyland |
| 83H555 |
| Massey Ferguson |
| 1447784M91, 186976M1, 186976V1, 2614B145, 2614B644, 353756X1, 3612115M1, 3637597M1, 3637597V1, 3639683M1, 890982M1, 962184M1, X696624200000 |
| Perkins |
| 2614B644 |
