Raw Edge Moulded Cogged Belt - AVX Section - Belt No. AVX13x1100 for Case IH 956 (56 Series)
Part Number: S.18638Categories: Engine Fuel and Filters
Part Number: S.18638
Grade: Replacement
Part Details
Raw Edge Moulded Cogged Belt - AVX Section - Belt No. AVX13x1100
Technical Information
| Width (ins) | 1/2 |
| Depth (mm) | 10 |
| Inside length Li (mm) | 1037 |
| Effective Length (mm) | 1082 |
| Pitch Length (Lp) (Lw): | 1082 |
| Datum length LD (mm) | 1082 |
| Outside length La (mm) | 1100 |
| Width (mm) | 13 |

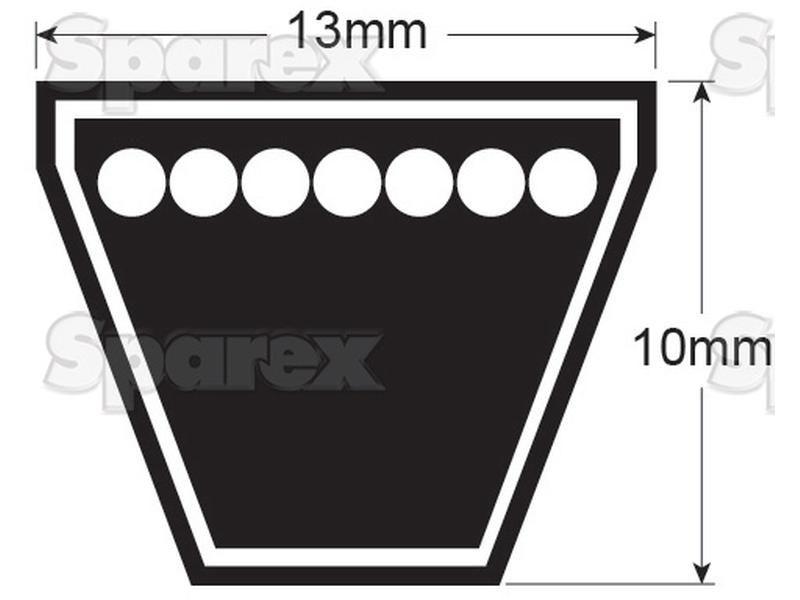

| Top Width x Depth | 13 x 10mm (1/2'' x 3/8'') |
| Related products | 14683 |
| Depth ins | 3/8 |
| Tariff Code | 4010390010 |
| Inside length Li ins | 41 |
| Outside length La (ins) | 43 |
| Effective Length (ins) | 43 |
| Section | AVX13 |
| Belt No. | AVX13x1100 |
| Type | Raw Edge Moulded Cogged Fan Belt |
| Brand | Sparex (Agribelt) |
Manufacturer Part Numbers
| Belt References |
|---|
| AVX13X1100 |
| Case IH |
| 3228282R1, 897505H1 |
| Fendt |
| X696619200000 |
| Fiat |
| 574709 |
| Ford New Holland |
| 3228282R1 |
