Ratchet Link Assembly - Double Clevis
Part Number: S.15293Categories: PTO (shaft), Linkage
Part Number: S.15293
Grade: Replacement
Part Details

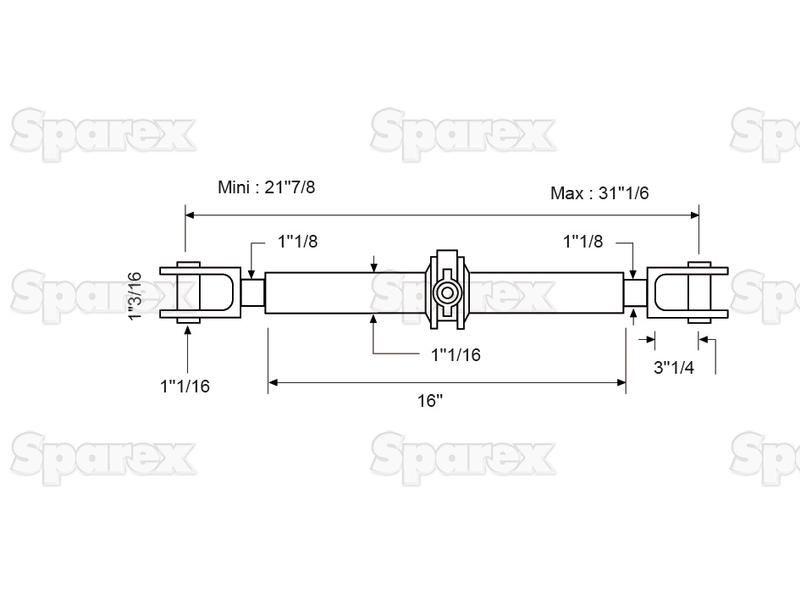

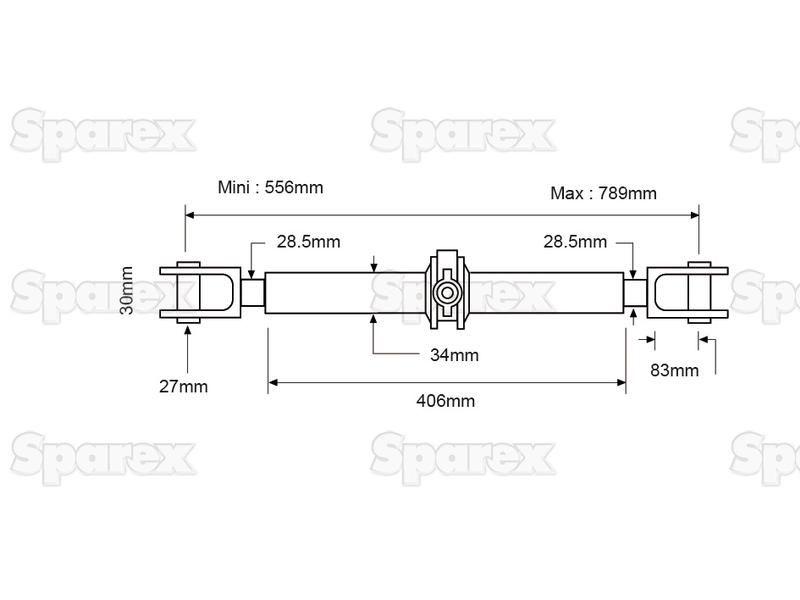

Ratchet Link Assembly - Double Clevis Min. Length: 555mm (21 7/8'')Max. Length: 789mm (31 1/6'')Tube length: 406mm (16'')Tube Ø: 34mm (1 11/32'')Thread size: 1 1/8'''' UNC
Technical Information
| Brand | Sparex |
| Centre Tube | S.15872 |
| Clevis Pin | S.15295 |
| Handle | S.13049 |
| Handle length mm | 405 |
| LH | S.15878 |
| Maximum Length ins | 31 1/6 |
| Maximum Length mm | 789 |
| Minimum Length ins | 21 7/8 |
| Minimum Length mm | 555 |
| Related Products | 15872 |
| RH | S.15879 |
| Tariff Code | 8708999790 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Tube Ø ins | 1 11/32 |
| Tube Ø mm | 34 |
| Tube Length ins | 16 |
| Tube length mm | 406 |
| Type | Double Clevis |
