Ratchet Link Assembly - Double Ball End
Part Number: S.15298Categories: PTO (shaft), Linkage
Part Number: S.15298
Grade: Replacement
Part Details

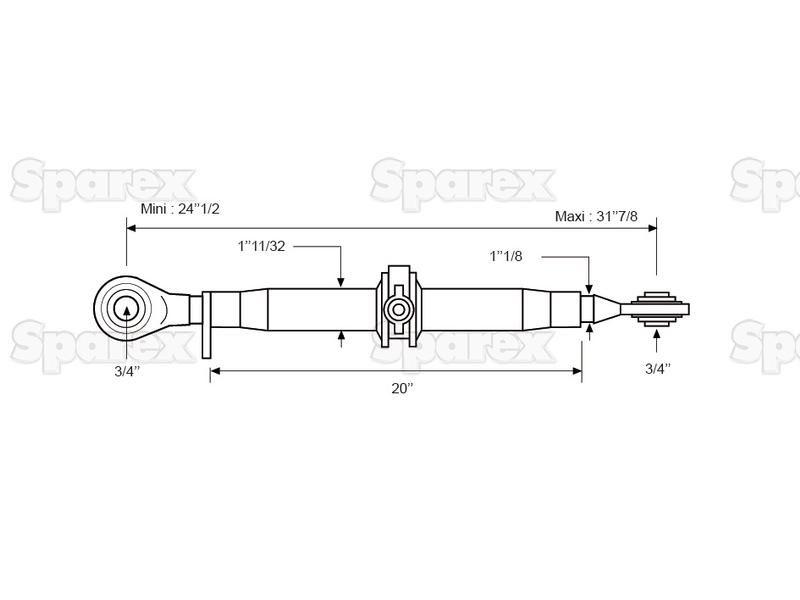

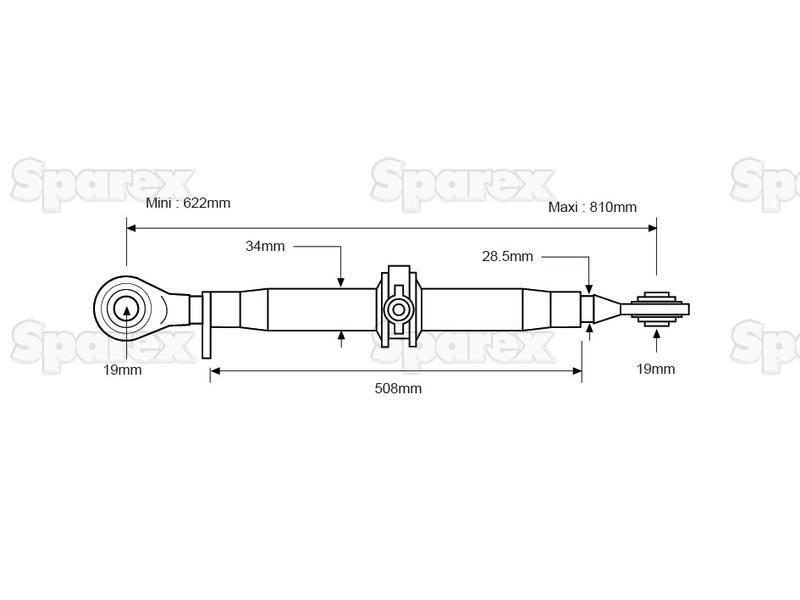

Ratchet Link Assembly - Double Ball End Min. Length: 622mm (24 1/2'')Max. Length: 810mm (31 7/8'')Tube length: 508mm (20'')Tube Ø: 34mm (1 11/32'')Thread size: 1 1/8'''' UNC
Technical Information
| Brand | Sparex |
| Category | 1 |
| Centre Tube | S.15873 |
| Handle | S.13049 |
| Handle length mm | 405 |
| LH | S.342 |
| Maximum Length ins | 31 7/8 |
| Maximum Length mm | 810 |
| Minimum Length ins | 24 1/2 |
| Minimum Length mm | 622 |
| RH | S.343 |
| Tariff Code | 8708999790 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Tube Ø ins | 1 11/32 |
| Tube Ø mm | 34 |
| Tube Length ins | 20 |
| Tube length mm | 508 |
| Type | Double Ball End |
