Ratchet Link Assembly - Double Ball End
Part Number: S.15297Categories: PTO (shaft), Linkage
Part Number: S.15297
Grade: Replacement
Part Details

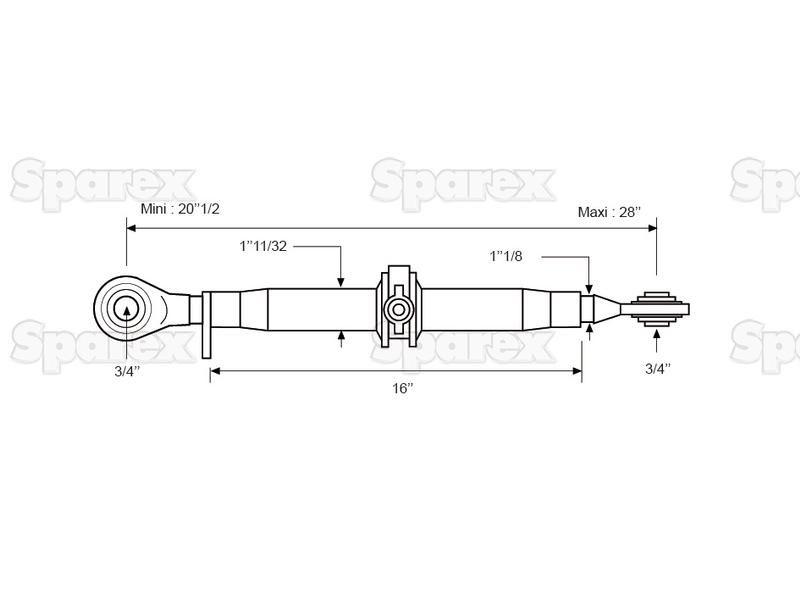

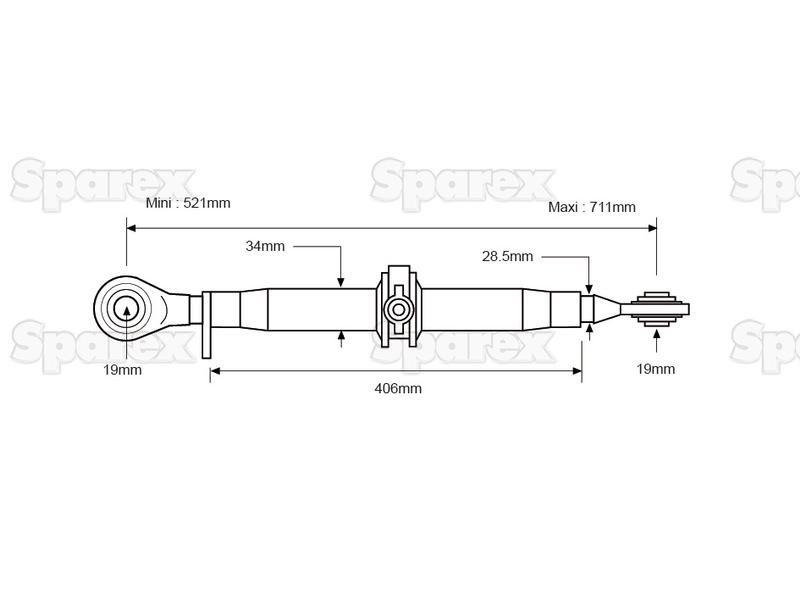

Ratchet Link Assembly - Double Ball End Min. Length: 520mm (20 1/2'')Max. Length: 711mm (28'')Tube length: 406mm (16'')Tube Ø: 34mm (1 11/32'')Thread size: 1 1/8'''' UNC
Technical Information
| Brand | Sparex |
| Category | 1 |
| Centre Tube | S.15872 |
| Handle | S.13049 |
| Handle length mm | 405 |
| LH | S.342 |
| Maximum Length ins | 28 |
| Maximum Length mm | 711 |
| Minimum Length ins | 20 1/2 |
| Minimum Length mm | 520 |
| Related Products | 15872 |
| RH | S.343 |
| Tariff Code | 8708999790 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Tube Ø ins | 1 11/32 |
| Tube Ø mm | 34 |
| Tube Length ins | 16 |
| Tube length mm | 406 |
| Type | Double Ball End |
