Ratchet Link Assembly - Ball and Clevis
Part Number: S.15294Categories: PTO (shaft), Linkage
Part Number: S.15294
Grade: Replacement
Part Details

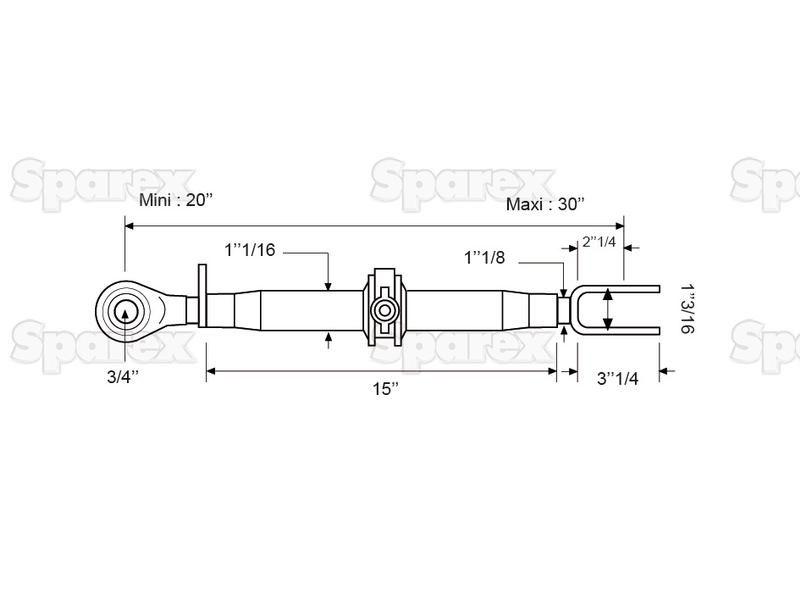

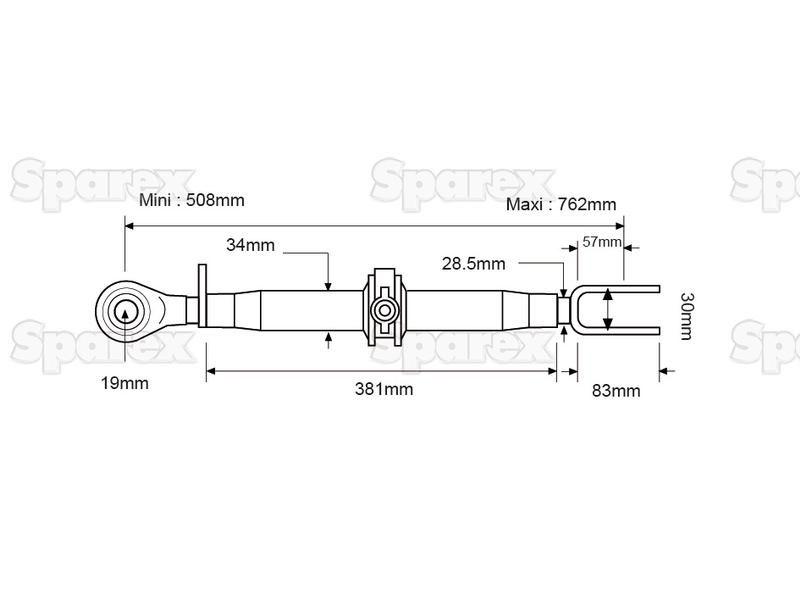

Ratchet Link Assembly - Ball and Clevis Min. Length: 508mm (20'')Max. Length: 762mm (30'')Tube length: 381mm (15'')Tube Ø: 34mm (1 11/32'')Thread size: 1 1/8'''' UNC
Technical Information
| Brand | Sparex |
| Centre Tube | S.15872 |
| Clevis Pin | S.15295 |
| Handle | S.13049 |
| Handle length mm | 405 |
| LH | S.342 |
| Maximum Length ins | 30 |
| Maximum Length mm | 762 |
| Minimum Length ins | 20 |
| Minimum Length mm | 508 |
| Related Products | 15872 |
| RH | S.15879 |
| Tariff Code | 8708999790 |
| Thread size | 1 1/8'' |
| Thread type | UNC |
| Tube Ø ins | 1 11/32 |
| Tube Ø mm | 34 |
| Tube Length ins | 15 |
| Tube length mm | 381 |
| Type | Ball and Clevis |
