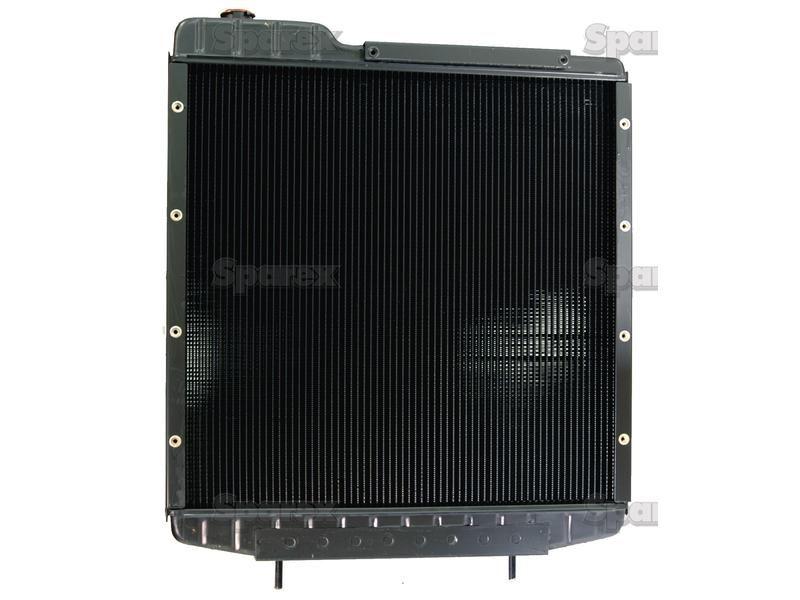

Radiator for Case IH 7250 (Magnum Series)
Part Number: S.73800Categories: Engine Fuel and Filters
Part Number: S.73800
Grade: Replacement
Part Details
Radiator Overall height: 785mm, Overall width: 725mm, Thickness: 120mm, Inlet: Ø57mm, Outlet: Ø57mm
Technical Information
| Thickness (mm) | 120 |
| C (mm) | 120 |
| Number of Coolers | 5 Row |
| D (mm) | 57 |
| E (mm) | 57 |
| Outlet (mm) | 57 |
| Inlet (mm) | 57 |
| Related products | 63104 |
| Overall width (mm) | 725 |
| B (mm) | 725 |
| Overall height (mm) | 785 |
| A (mm) | 785 |
| Tariff Code | 8708919990 |
| With Intercooler | No |
| Supplied with Radiator Cap | No |
| Radiator Cap | S.63104 |
| Brand | Sparex |
Manufacturer Part Numbers
| Case IH |
|---|
| A189087, A190663 |
