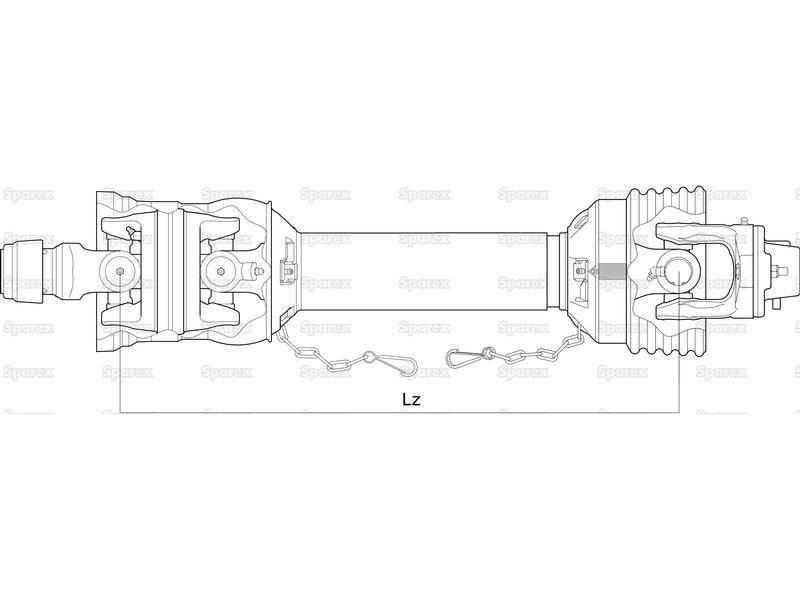

PTO Shaft - WWCV Wide Angle - one Side, (Lz) Length 910mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/4'' x 6 Spline Shear Bolt Limiter
Part Number: S.155510Categories: PTO (shaft), Linkage
Part Number: S.155510
Grade: Replacement
Part Details
PTO Shaft - WWCV Wide Angle - one Side, (Lz) Length 910mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/4'' x 6 Spline Shear Bolt Limiter HP Rating @ 540RPM: 117HP, Series: , AB8N-80°/A8N-80°
Technical Information
| Brand | Weasler |
| Clutch Setting Nm | 4180 |
| HP Rating @ 540RPM | 117 |
| HP Rating Range @ 540RPM | 55 to 119 |
| Implement End | 1 3/4'' x 6 Spline Shear Bolt Limiter |
| Italian Series | AB8N-80°/A8N-80° |
| Kilowatt Power Rating @ 540RPM | 87 |
| Lz Length mm | 910 |
| PTO Series | AB8N-80°/A8N-80° |
| Reference | 1808-6870-09124 |
| Related Products | 115494, 118072, 118303 |
| Tariff Code | 8483908990 |
| Torque Newton Metres | 2712 |
| Torque Range Nm | 2255 - 2900Nm |
| Total Closed Length mm | 1195 |
| Tractor End | 1 3/8'' x 6 Spline 80° W.A. |
| Tube Profile | Triangle |
| Tube Ref | 24569/12521 |
| Universal Joint Dimensions | 35 x 106.5mm |
