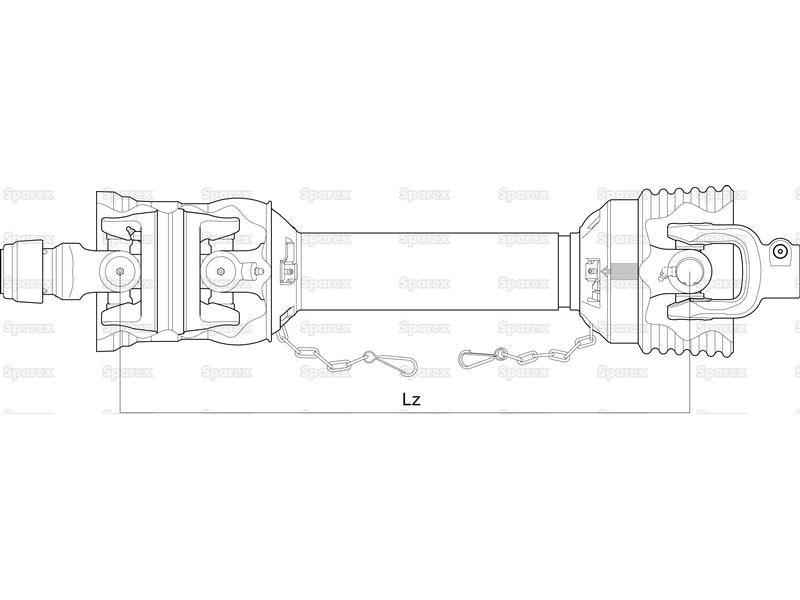

PTO Shaft - WWCV Wide Angle - one Side, (Lz) Length 860mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R.
Part Number: S.39041Categories: PTO (shaft), Linkage
Part Number: S.39041
Grade: Replacement
Part Details
PTO Shaft - WWCV Wide Angle - one Side, (Lz) Length 860mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. HP Rating @ 540RPM: 25HP, Series: AW20/PWE280,
Technical Information
| Brand | Weasler |
| German Series | AW20/PWE280 |
| HP Rating @ 540RPM | 25 |
| HP Rating Range @ 540RPM | up to 54 |
| Implement End | 1 3/8'' x 6 Spline Q.R. |
| Kilowatt Power Rating @ 540RPM | 19 |
| Lz Length mm | 860 |
| PTO Series | AW20/PWE280 |
| Reference | 1800-7202-086 |
| Tariff Code | 8483908990 |
| Torque Newton Metres | 470 |
| Torque Range Nm | 335 - 1240Nm |
| Total Closed Length mm | 1079 |
| Tractor End | 1 3/8'' x 6 Spline 80° W.A. |
| Tube Profile | Lemon |
| Tube Ref | OvGA/1G |
| Universal Joint Dimensions | 24 x 61 & 22 x 76mm |
