PTO Shaft - WWCV Wide Angle - one Side, (Lz) Length 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R.
Part Number: S.164258Categories: PTO (shaft), Linkage
Part Number: S.164258
Grade: Replacement
Part Details
PTO Shaft - WWCV Wide Angle - one Side, (Lz) Length 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. HP Rating @ 540RPM: 77HP, Series: AW35/PWE480,
Technical Information
| Brand | Weasler |
| German Series | AW35/PWE480 |
| HP Rating @ 540RPM | 77 |
| HP Rating Range @ 540RPM | 55 to 119 |
| Implement End | 1 3/8'' x 6 Spline Q.R. |
| Kilowatt Power Rating @ 540RPM | 57 |

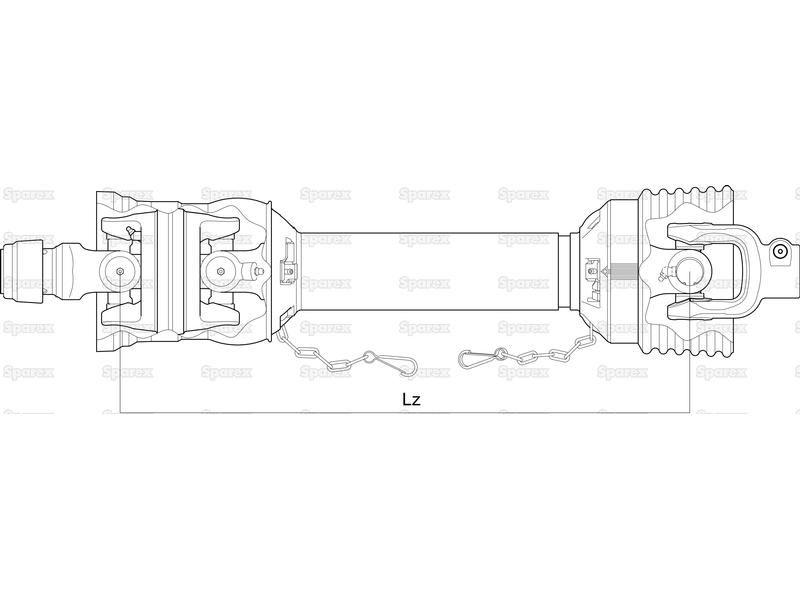

| Lz Length mm | 1210 |
| PTO Series | AW35/PWE480 |
| Reference | 1811-7601-121 |
| Related Products | 151418 |
| Tariff Code | 8483908990 |
| Torque Newton Metres | 1491 |
| Torque Range Nm | 1245 - 2250Nm |
| Total Closed Length mm | 1453 |
| Tractor End | 1 3/8'' x 6 Spline 80° W.A. |
| Tube Profile | Lemon |
| Tube Ref | 1bGA/2aG |
| Universal Joint Dimensions | 28.6 x 81.3 & 31.8 x 108mm |
