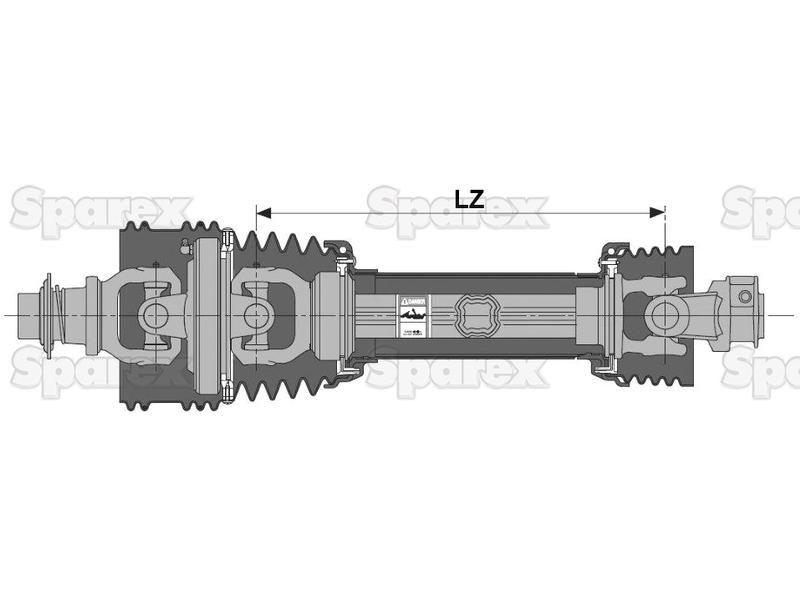

PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (CS8R121CEWS7007)

Part Number: S.165148Categories: PTO (shaft), Linkage
PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (CS8R121CEWS7007)
PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (CS8R121CEWS7007)

Part Number: S.165148

Grade: Replacement

Part Details

PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. HP Rating @ 540RPM: 90HP, Series: , SFT S8-80°

Technical Information

Brand Bondioli & Pavesi
HP Rating @ 1000RPM 136
HP Rating @ 540RPM 90
HP Rating Range @ 540RPM 55 to 119
Implement End 1 3/8'' x 6 Spline Q.R.
Italian Series SFT S8-80°
Kilowatt Power Rating @ 1000RPM 100
Kilowatt Power Rating @ 540RPM 66
Lz Length mm 1210
PTO Series SFT S8-80°
Reference CS8R121CEWS7007
Related Products 24216, 165075, 165082, 165083, 165088, 165106, 165107, 165124, 165134, 165171, 165174, 166076
Tariff Code 8483908990
Torque Newton Metres 1171
Torque Range Nm 335 - 1240Nm
Tractor End 1 3/8'' x 6 Spline 80° W.A.
Tube Profile Square
Tube Ref 2454D/12225
Universal Joint Dimensions 30.2 x 106mm

Manufacturer Part Numbers

Bondioli & Pavesi
CS8R121CEWS7007
