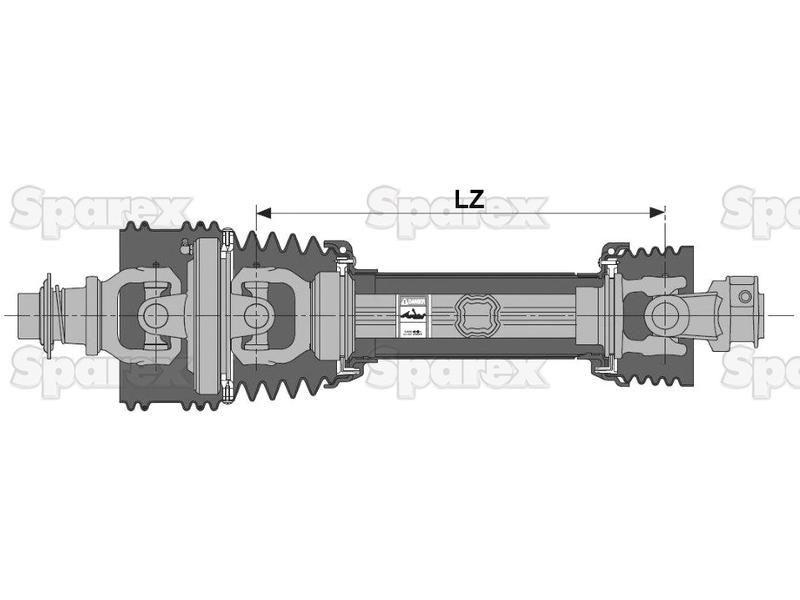

PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (CS6R121CEWR7007)

Part Number: S.165142Categories: PTO (shaft), Linkage
PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (CS6R121CEWR7007)
PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (CS6R121CEWR7007)

Part Number: S.165142

Grade: Replacement

Part Details

PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. HP Rating @ 540RPM: 55HP, Series: , SFT S6-80°

Technical Information

Brand Bondioli & Pavesi
HP Rating @ 1000RPM 83
HP Rating @ 540RPM 55
HP Rating Range @ 540RPM 55 to 119
Implement End 1 3/8'' x 6 Spline Q.R.
Italian Series SFT S6-80°
Kilowatt Power Rating @ 1000RPM 61
Kilowatt Power Rating @ 540RPM 40
Lz Length mm 1210
PTO Series SFT S6-80°
Reference CS6R121CEWR7007
Related Products 24210, 165073, 165079, 165080, 165086, 165099, 165100, 165118, 165130, 165157, 165160, 166075
Tariff Code 8483908990
Torque Newton Metres 716
Torque Range Nm 335 - 1240Nm
Tractor End 1 3/8'' x 6 Spline 80° W.A.
Tube Profile Square
Tube Ref 2453N/12246
Universal Joint Dimensions 27 x 100mm

Manufacturer Part Numbers

Bondioli & Pavesi
CS6R121CEWR7007
