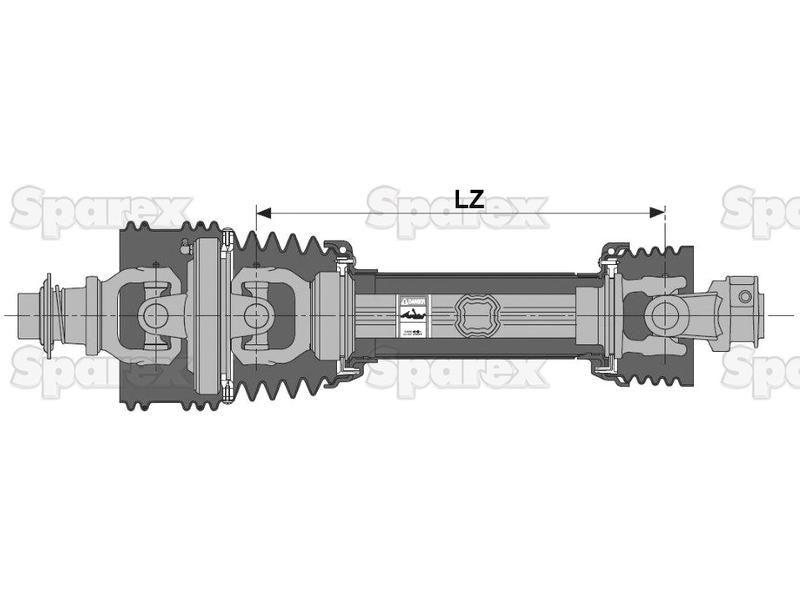

PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (CS4R121CEWR7007)

Part Number: S.165140Categories: PTO (shaft), Linkage
PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (CS4R121CEWR7007)
PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (CS4R121CEWR7007)

Part Number: S.165140

Grade: Replacement

Part Details

PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. HP Rating @ 540RPM: 38HP, Series: , SFT S4-80°

Technical Information

Brand Bondioli & Pavesi
HP Rating @ 1000RPM 57
HP Rating @ 540RPM 38
HP Rating Range @ 540RPM up to 54
Implement End 1 3/8'' x 6 Spline Q.R.
Italian Series SFT S4-80°
Kilowatt Power Rating @ 1000RPM 42
Kilowatt Power Rating @ 540RPM 28
Lz Length mm 1210
PTO Series SFT S4-80°
Reference CS4R121CEWR7007
Related Products 24207, 165072, 165077, 165078, 165085, 165094, 165095, 165116, 165126, 165149, 165156, 166074
Tariff Code 8483908990
Torque Newton Metres 494
Torque Range Nm 335 - 1240Nm
Tractor End 1 3/8'' x 6 Spline 80° W.A.
Tube Profile Square
Tube Ref 2453G/12243
Universal Joint Dimensions 22 x 86mm

Manufacturer Part Numbers

Bondioli & Pavesi
CS4R121CEWR7007
