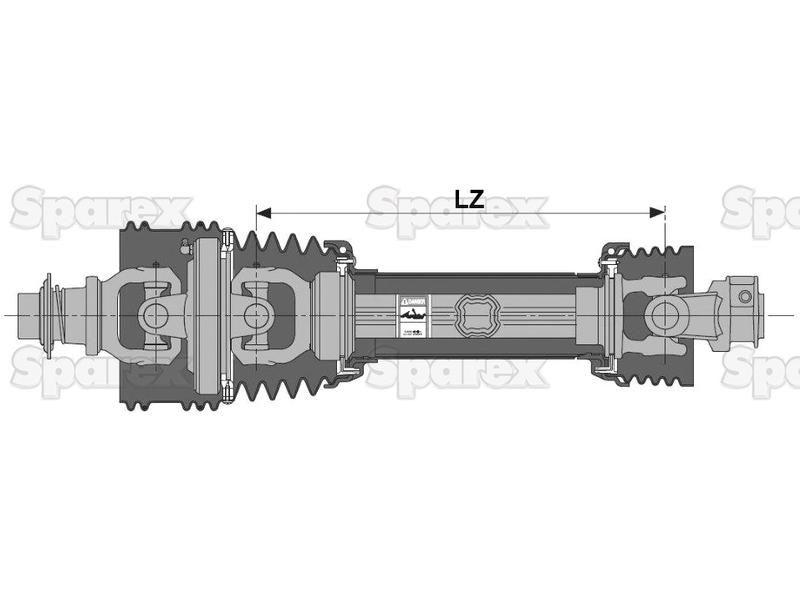

PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (CH7R121CEWR7007)

Part Number: S.165145Categories: PTO (shaft), Linkage
PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (CH7R121CEWR7007)
PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (CH7R121CEWR7007)

Part Number: S.165145

Grade: Replacement

Part Details

PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. HP Rating @ 540RPM: 70HP, Series: , SFT H7-80°

Technical Information

Brand Bondioli & Pavesi
HP Rating @ 1000RPM 106
HP Rating @ 540RPM 70
HP Rating Range @ 540RPM 55 to 119
Implement End 1 3/8'' x 6 Spline Q.R.
Italian Series SFT H7-80°
Kilowatt Power Rating @ 1000RPM 78
Kilowatt Power Rating @ 540RPM 51
Lz Length mm 1210
PTO Series SFT H7-80°
Reference CH7R121CEWR7007
Related Products 111848, 165074, 165080, 165081, 165106, 165107, 165120, 165130, 165163, 165166, 166076
Tariff Code 8483908990
Torque Newton Metres 911
Torque Range Nm 335 - 1240Nm
Tractor End 1 3/8'' x 6 Spline 80° W.A.
Tube Profile Square
Tube Ref 2454D/12225
Universal Joint Dimensions 27 x 100mm

Manufacturer Part Numbers

Bondioli & Pavesi
CH7R121CEWR7007
