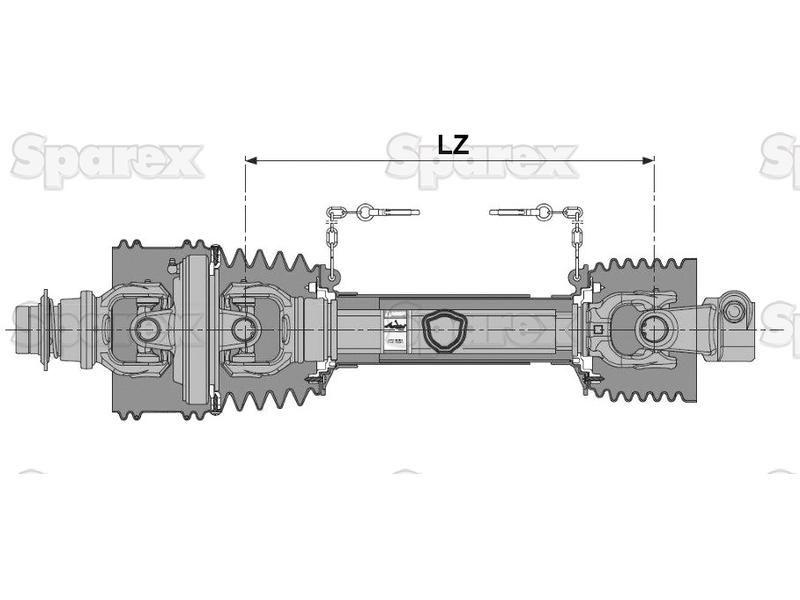

PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (7G8R121CEWS7007)

Part Number: S.165146Categories: PTO (shaft), Linkage
PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (7G8R121CEWS7007)
PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (7G8R121CEWS7007)

Part Number: S.165146

Grade: Replacement

Part Details

PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. HP Rating @ 540RPM: 83HP, Series: , Global G8-80°

Technical Information

Brand Bondioli & Pavesi
HP Rating @ 1000RPM 130
HP Rating @ 540RPM 83
HP Rating Range @ 540RPM 55 to 119
Implement End 1 3/8'' x 6 Spline Q.R.
Italian Series Global G8-80°
Kilowatt Power Rating @ 1000RPM 96
Kilowatt Power Rating @ 540RPM 61
Lz Length mm 1210
PTO Series Global G8-80°
Reference 7G8R121CEWS7007
Related Products 24216, 165075, 165082, 165083, 165103, 165108, 165121, 165134, 165168, 165171, 166079
Tariff Code 8483908990
Torque Newton Metres 1080
Torque Range Nm 335 - 1240Nm
Tractor End 1 3/8'' x 6 Spline 80° W.A.
Tube Profile Triangle
Tube Ref 24518/12517
Universal Joint Dimensions 30.2 x 106mm

Manufacturer Part Numbers

Bondioli & Pavesi
7G8R121CEWS7007
