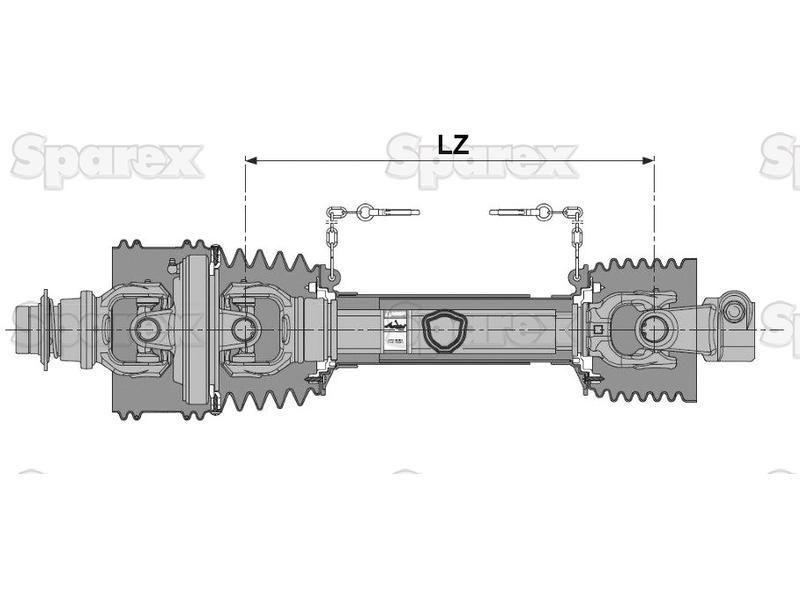

PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (7G7R121CEWR7007)

Part Number: S.165143Categories: PTO (shaft), Linkage
PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (7G7R121CEWR7007)
PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (7G7R121CEWR7007)

Part Number: S.165143

Grade: Replacement

Part Details

PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. HP Rating @ 540RPM: 64HP, Series: , Global G7-80°

Technical Information

Brand Bondioli & Pavesi
HP Rating @ 1000RPM 100
HP Rating @ 540RPM 64
HP Rating Range @ 540RPM 55 to 119
Implement End 1 3/8'' x 6 Spline Q.R.
Italian Series Global G7-80°
Kilowatt Power Rating @ 1000RPM 74
Kilowatt Power Rating @ 540RPM 47
Lz Length mm 1210
PTO Series Global G7-80°
Reference 7G7R121CEWR7007
Related Products 111848, 165074, 165080, 165081, 165087, 165102, 165103, 165119, 165130, 165162, 165163, 166079
Tariff Code 8483908990
Torque Newton Metres 830
Torque Range Nm 335 - 1240Nm
Tractor End 1 3/8'' x 6 Spline 80° W.A.
Tube Profile Triangle
Tube Ref 24616/12517
Universal Joint Dimensions 27 x 100mm

Manufacturer Part Numbers

Bondioli & Pavesi
7G7R121CEWR7007
