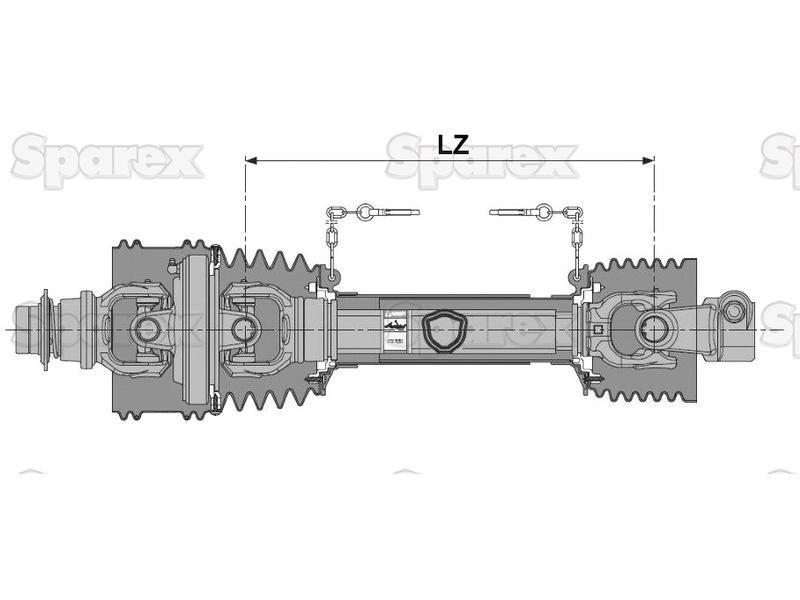

PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (7G4R121CEWR7007)

Part Number: S.165138Categories: PTO (shaft), Linkage
PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (7G4R121CEWR7007)
PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (7G4R121CEWR7007)

Part Number: S.165138

Grade: Replacement

Part Details

PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. HP Rating @ 540RPM: 35HP, Series: , Global G4-80°

Technical Information

Brand Bondioli & Pavesi
HP Rating @ 1000RPM 55
HP Rating @ 540RPM 35
HP Rating Range @ 540RPM up to 54
Implement End 1 3/8'' x 6 Spline Q.R.
Italian Series Global G4-80°
Kilowatt Power Rating @ 1000RPM 40
Kilowatt Power Rating @ 540RPM 26
Lz Length mm 1210
PTO Series Global G4-80°
Reference 7G4R121CEWR7007
Related Products 24207, 165072, 165077, 165078, 165084, 165091, 165092, 165115, 165126, 165152, 165153, 166078
Tariff Code 8483908990
Torque Newton Metres 460
Torque Range Nm 335 - 1240Nm
Tractor End 1 3/8'' x 6 Spline 80° W.A.
Tube Profile Triangle
Tube Ref 24510/12516
Universal Joint Dimensions 22 x 86mm

Manufacturer Part Numbers

Bondioli & Pavesi
7G4R121CEWR7007
