PTO Shaft - (Lz) Length: 880mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter
Part Number: S.164285Categories: PTO (shaft), Linkage
Part Number: S.164285
Grade: Replacement
Part Details
PTO Shaft - (Lz) Length: 880mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter HP Rating @ 540RPM: 35HP, Series: AB4/A4.
Technical Information
| Brand | Sparex |
| Clutch Setting Nm | 1400 |
| HP Rating @ 540RPM | 35 |
| HP Rating Range @ 540RPM | up to 54 |
| Implement End | 1 3/8'' x 6 Spline Shear Bolt Limiter |
| Italian Series | AB4/A4 |
| Kilowatt Power Rating @ 540RPM | 26 |

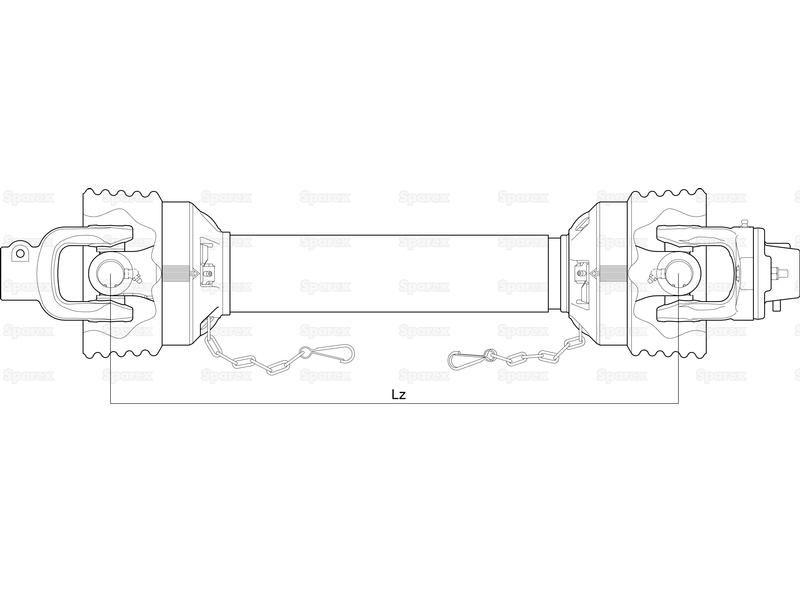

| Lz Length mm | 880 |
| PTO Series | AB4/A4 |
| Related Products | 166692, 166693 |
| Tariff Code | 8483908990 |
| Torque Newton Metres | 460 |
| Torque Range Nm | 335 - 1240Nm |
| Total Closed Length mm | 1095 |
| Tractor End | 1 3/8'' x 6 Spline Q.R. |
| Tube Profile | Triangle |
| Tube Ref | 12507/12508 |
| Universal Joint Dimensions | 27 x 74.5mm |
