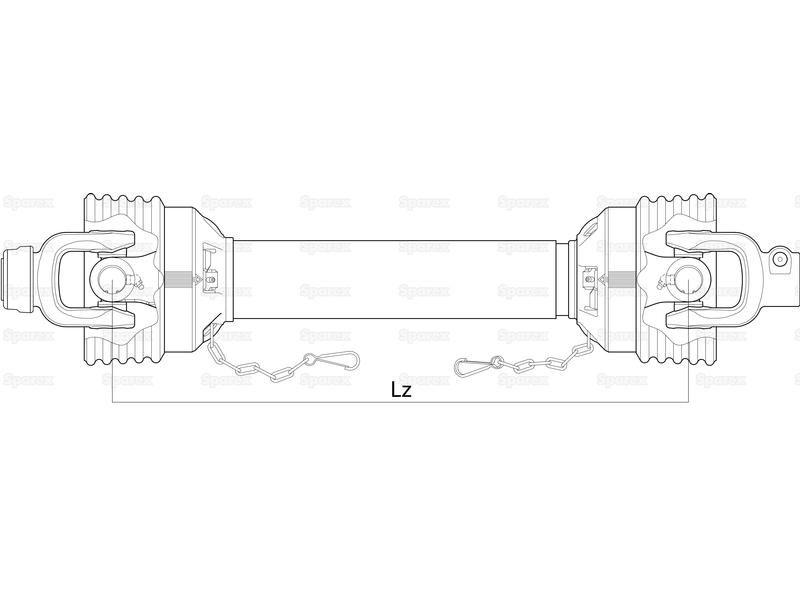

PTO Shaft - (Lz) Length: 860mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. for Universal UNIVERSAL
Part Number: S.23250Categories: PTO (shaft), Linkage
Part Number: S.23250
Grade: Replacement
Part Details
PTO Shaft - (Lz) Length: 860mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. HP Rating @ 540RPM: 80HP, German Series: AW36/W2500.
Technical Information
| Brand | Weasler |
| German Series | AW36/W2500 |
| Guard Type | Easylock |
| HP Rating @ 540RPM | 80 |
| HP Rating Range @ 540RPM | 55 to 119 |
| Implement End | 1 3/8'' x 6 Spline Q.R. |
| Kilowatt Power Rating @ 540RPM | 60 |
| Lz Length mm | 860 |
| PTO Series | AW36/W2500 |
| Reference | 1600-7902-086 |
| Related Products | 20478, 24820, 24821, 4820, 4821, 59613, 59632, 117878, 117879, 117880, 117897, 117914 |
| Tariff Code | 8708999790 |
| Torque Newton Metres | 1900 |
| Torque Range Nm | 1245 - 2250Nm |
| Total Closed Length mm | 1100 |
| Tractor End | 1 3/8'' x 6 Spline Q.R. |
| Tube Profile | Star |
| Tube Ref | S4/S5 |
| Universal Joint Dimensions | 36 x 89mm |
