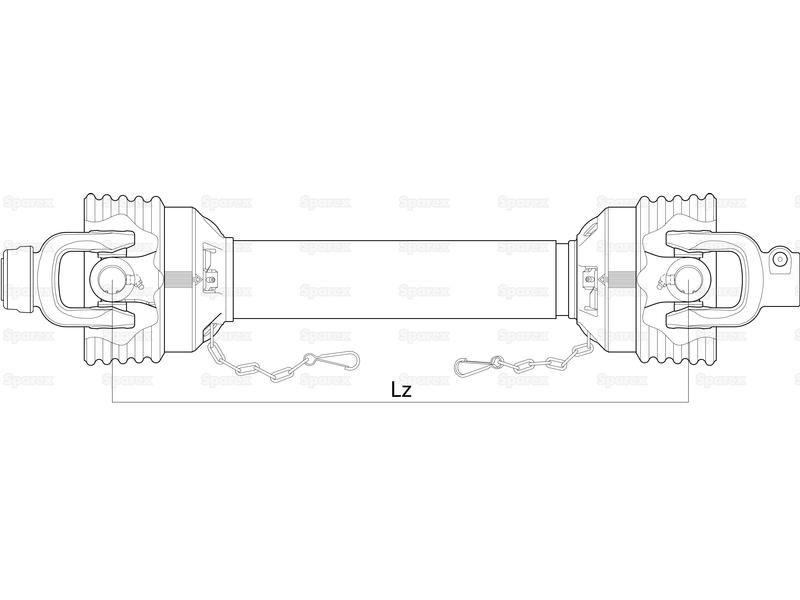

PTO Shaft - (Lz) Length: 860mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. for Universal UNIVERSAL
Part Number: S.23249Categories: PTO (shaft), Linkage
Part Number: S.23249
Grade: Replacement
Part Details
PTO Shaft - (Lz) Length: 860mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. HP Rating @ 540RPM: 52HP, German Series: AW35/W2400.
Technical Information
| Brand | Weasler |
| German Series | AW35/W2400 |
| Guard Type | Easylock |
| HP Rating @ 540RPM | 52 |
| HP Rating Range @ 540RPM | up to 54 |
| Implement End | 1 3/8'' x 6 Spline Q.R. |
| Kilowatt Power Rating @ 540RPM | 39 |
| Lz Length mm | 860 |
| PTO Series | AW35/W2400 |
| Reference | 1600-7601-086 |
| Related Products | 20477, 24193, 24194, 4193, 4194, 59613, 59632, 117832, 117833, 117836, 117857, 117875 |
| Tariff Code | 8708999790 |
| Torque Newton Metres | 1240 |
| Torque Range Nm | 335 - 1240Nm |
| Total Closed Length mm | 1060 |
| Tractor End | 1 3/8'' x 6 Spline Q.R. |
| Tube Profile | Lemon |
| Tube Ref | 1b/2a |
| Universal Joint Dimensions | 32 x 76mm |
Manufacturer Part Numbers
| Walterscheid |
|---|
| 1113103, 1113108 |
