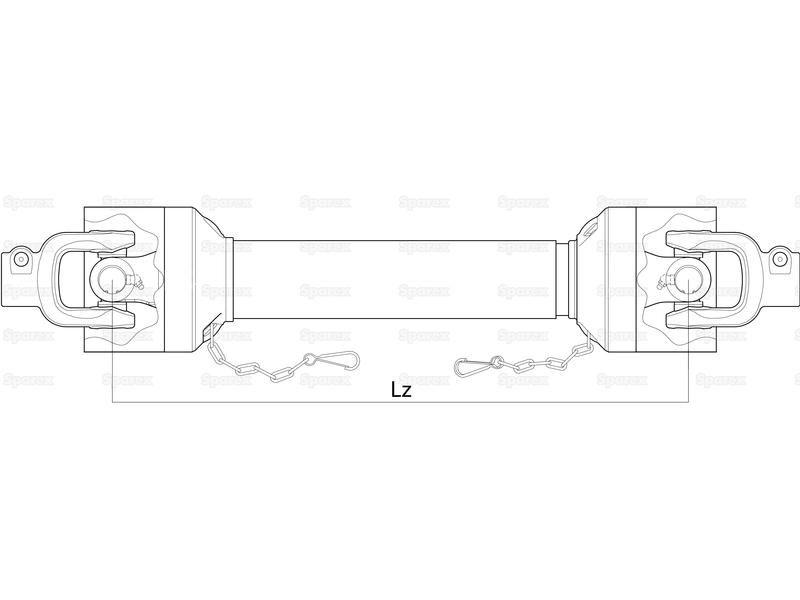

PTO Shaft - (Lz) Length: 760mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter
Part Number: S.13646Categories: PTO (shaft), Linkage
Part Number: S.13646
Grade: Replacement
Part Details
PTO Shaft - (Lz) Length: 760mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter HP Rating @ 540RPM: 90HP, Series: AB8N/A8N.
Technical Information
| Brand | Sparex |
| HP Rating @ 540RPM | 90 |
| HP Rating Range @ 540RPM | 55 to 119 |
| Implement End | 1 3/8'' x 6 Spline Shear Bolt Limiter |
| Italian Series | AB8N/A8N |
| Kilowatt Power Rating @ 540RPM | 67 |
| Lz Length mm | 760 |
| PTO Series | AB8N/A8N |
| Related Products | 59639 |
| Tariff Code | 8483908990 |
| Torque Newton Metres | 2250 |
| Torque Range Nm | 1245 - 2250Nm |
| Total Closed Length mm | 1020 |
| Tractor End | 1 3/8'' x 6 Spline Q.R. |
| Tube Profile | Triangle |
| Tube Ref | 12512/12522 |
| Universal Joint Dimensions | 35 x 106.5mm |
