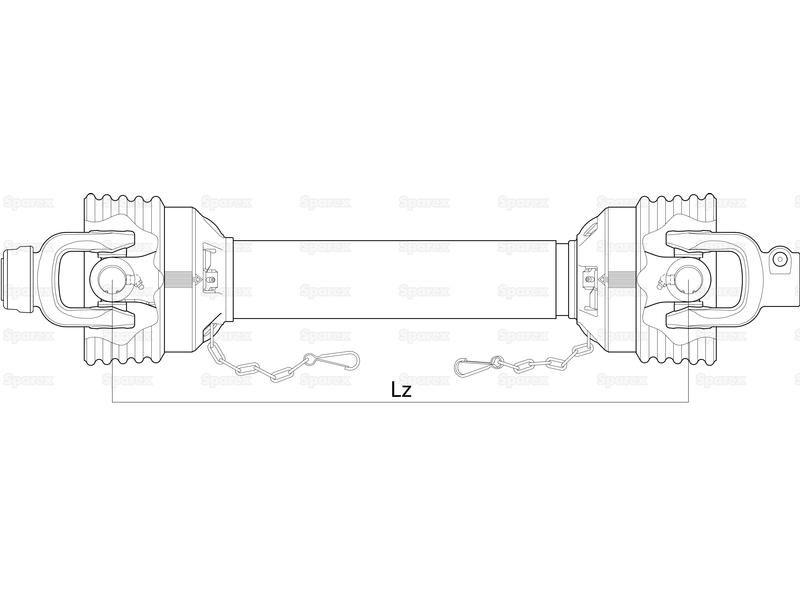

PTO Shaft - (Lz) Length: 710mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. Walterscheid (1113087)
Part Number: S.39005Categories: PTO (shaft), Linkage
Part Number: S.39005
Grade: Replacement
Part Details
PTO Shaft - (Lz) Length: 710mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. HP Rating @ 540RPM: 21HP, Series: AW20/W2200.
Technical Information
| Brand | Weasler |
| German Series | AW20/W2200 |
| Guard Type | Easylock |
| HP Rating @ 540RPM | 21 |
| HP Rating Range @ 540RPM | up to 54 |
| Implement End | 1 3/8'' x 6 Spline Q.R. |
| Kilowatt Power Rating @ 540RPM | 16 |
| Lz Length mm | 710 |
| PTO Series | AW20/W2200 |
| Reference | 1600-7200-071 |
| Related Products | 24190, 24192, 4190, 4192, 59604, 59631, 6031, 72447, 115373, 115375, 115396, 118070 |
| Tariff Code | 8483908990 |
| Torque Newton Metres | 470 |
| Torque Range Nm | 335 - 1240Nm |
| Total Closed Length mm | 910 |
| Tractor End | 1 3/8'' x 6 Spline Q.R. |
| Tube Profile | Lemon |
| Tube Ref | Ov/1 |
| Universal Joint Dimensions | 23.8 x 61.2mm |
Manufacturer Part Numbers
| Walterscheid |
|---|
| 1113087 |
