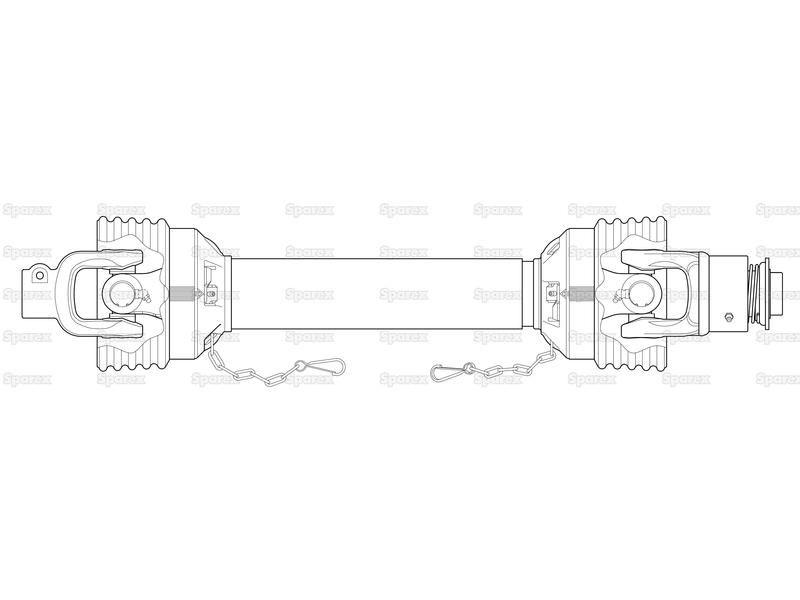

PTO Shaft - (Lz) Length: 710mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Overunning Clutch (Anti Clockwise)
Part Number: S.39034Categories: PTO (shaft), Linkage
Part Number: S.39034
Grade: Replacement
Part Details
PTO Shaft - (Lz) Length: 710mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Overunning Clutch (Anti Clockwise) HP Rating @ 540RPM: 52HP, Series: AW35/W2400.
Technical Information
| Brand | Weasler |
| German Series | AW35/W2400 |
| Guard Type | Easylock |
| HP Rating @ 540RPM | 52 |
| HP Rating Range @ 540RPM | up to 54 |
| Implement End | 1 3/8'' x 6 Spline Overunning Clutch (Anti Clockwise) |
| Kilowatt Power Rating @ 540RPM | 39 |
| Lz Length mm | 710 |
| PTO Series | AW35/W2400 |
| Reference | 1631-7602-071 |
| Related Products | 20477, 24193, 24194, 4193, 4194, 59612, 59632, 117832, 117833, 117839, 117857, 117875 |
| Tariff Code | 8483908990 |
| Torque Newton Metres | 1240 |
| Torque Range Nm | 335 - 1240Nm |
| Total Closed Length mm | 996 |
| Tractor End | 1 3/8'' x 6 Spline Q.R. |
| Tractor PTO Rotation | Anti-Clockwise |
| Tube Profile | Lemon |
| Tube Ref | 1b/2a |
| Universal Joint Dimensions | 32 x 76mm |
