PTO Shaft - (Lz) Length: 1510mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter
Part Number: S.164297Categories: PTO (shaft), Linkage
Part Number: S.164297
Grade: Replacement
Part Details
PTO Shaft - (Lz) Length: 1510mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter HP Rating @ 540RPM: 47HP, Series: AB5/A5.
Technical Information
| Brand | Sparex |
| Clutch Setting Nm | 1600 |
| HP Rating @ 540RPM | 47 |
| HP Rating Range @ 540RPM | up to 54 |
| Implement End | 1 3/8'' x 6 Spline Shear Bolt Limiter |
| Italian Series | AB5/A5 |
| Kilowatt Power Rating @ 540RPM | 35 |

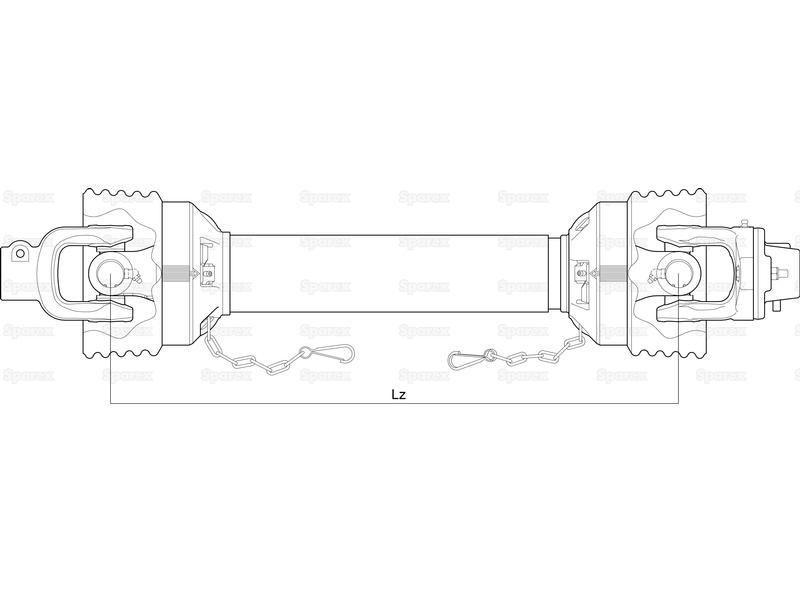

| Lz Length mm | 1510 |
| PTO Series | AB5/A5 |
| Related Products | 166692, 166693 |
| Tariff Code | 8483908990 |
| Torque Newton Metres | 620 |
| Torque Range Nm | 335 - 1240Nm |
| Total Closed Length mm | 1732 |
| Tractor End | 1 3/8'' x 6 Spline Q.R. |
| Tube Profile | Triangle |
| Tube Ref | 12509/12510 |
| Universal Joint Dimensions | 30.2 x 79.4mm |
