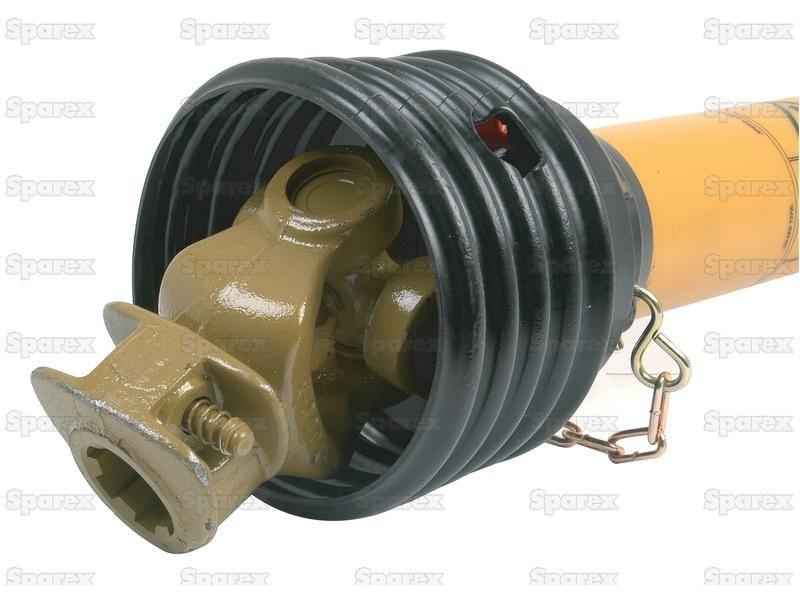

PTO Shaft - (Lz) Length: 1510mm, 1 1/8'' x 6 Spline Q.R. to 1 1/8'' x 6 Spline Q.R.
Part Number: S.150316Categories: PTO (shaft), Linkage
Part Number: S.150316
Grade: Replacement
Part Details
PTO Shaft - (Lz) Length: 1510mm, 1 1/8'' x 6 Spline Q.R. to 1 1/8'' x 6 Spline Q.R. HP Rating @ 540RPM: 21HP, Series: AW20/W2200.
Technical Information
| Brand | Sparex |
| German Series | AW20/W2200 |
| HP Rating @ 540RPM | 21 |
| HP Rating Range @ 540RPM | up to 54 |
| Implement End | 1 1/8'' x 6 Spline Q.R. |
| Kilowatt Power Rating @ 540RPM | 16 |

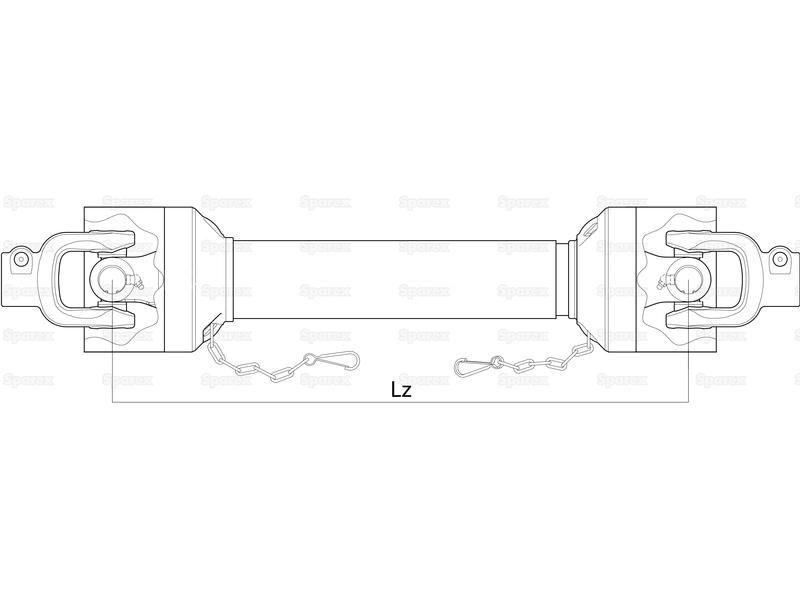

| Lz Length mm | 1510 |
| PTO Series | AW20/W2200 |
| Tariff Code | 8483908990 |
| Torque Newton Metres | 470 |
| Torque Range Nm | 335 - 1240Nm |
| Total Closed Length mm | 1700 |
| Tractor End | 1 1/8'' x 6 Spline Q.R. |
| Tube Profile | Lemon |
| Tube Ref | Ov/1 |
| Universal Joint Dimensions | 23.8 x 61.2mm |
