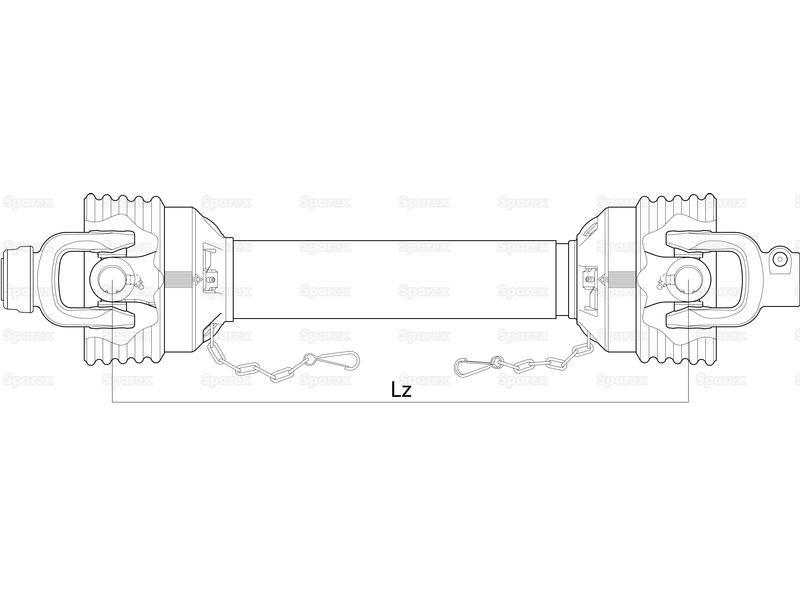

PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. Walterscheid (1113085)
Part Number: S.39003Categories: PTO (shaft), Linkage
Part Number: S.39003
Grade: Replacement
Part Details
PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. HP Rating @ 540RPM: 15HP, Series: AW10/W2100.
Technical Information
| Brand | Weasler |
| German Series | AW10/W2100 |
| Guard Type | Easylock |
| HP Rating @ 540RPM | 15 |
| HP Rating Range @ 540RPM | up to 54 |
| Implement End | 1 3/8'' x 6 Spline Q.R. |
| Kilowatt Power Rating @ 540RPM | 12 |
| Lz Length mm | 1210 |
| PTO Series | AW10/W2100 |
| Reference | 1600-7102-121 |
| Related Products | 24703, 24705, 4703, 4705, 56500, 56602, 72444, 115307, 115308, 115311, 115332, 115335 |
| Tariff Code | 8483908990 |
| Torque Newton Metres | 335 |
| Torque Range Nm | 335 - 1240Nm |
| Total Closed Length mm | 1410 |
| Tractor End | 1 3/8'' x 6 Spline Q.R. |
| Tube Profile | Lemon |
| Tube Ref | Ooa/Oa |
| Universal Joint Dimensions | 22 x 54.8mm |
Manufacturer Part Numbers
| Walterscheid |
|---|
| 1113085 |
